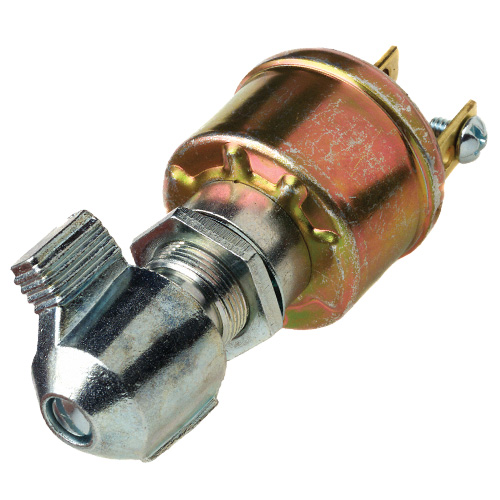

Universal Ignition Switch Off/Ign/Start

Ignition switches are usually operated by a coded key and tumbler lock, hencol keyed lock or lever. They are available with coded cylinder locks and keys or hencol non-tumbler locks with compatible keys.

Part number 95612BX
Categories: , .

Features

  • Universal Ignition Switch 3 Position Off/Ign/Start
  • 3 screw terminals, silver contacts
  • O-ring sealed housing, lever actuator
  • Mounting stem 5/8-32
  • Panel thickness 1.52mm to 6.65mm

Specifications

Voltage

6V-36V Multivoltage

Amperage

25A@12V ignition, 20A@12V start

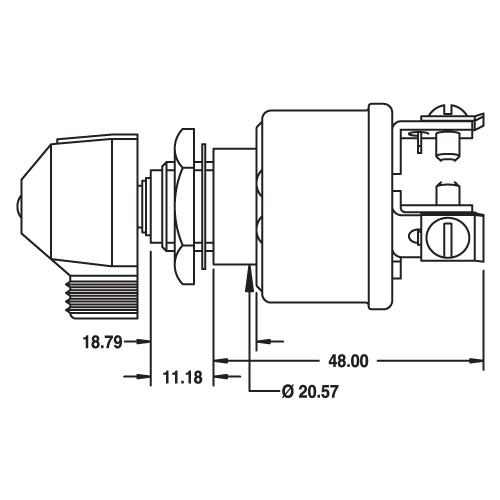

Dimensions

H 81 x Ø 37

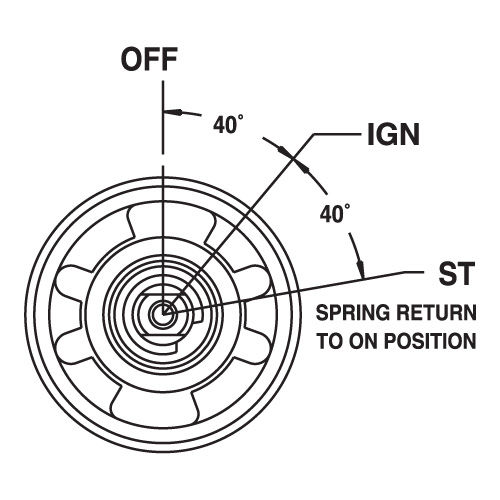

Modes

Off/Ign/Start

Series

Ignition Fixed Start

Application

Heavy Duty, Mining
