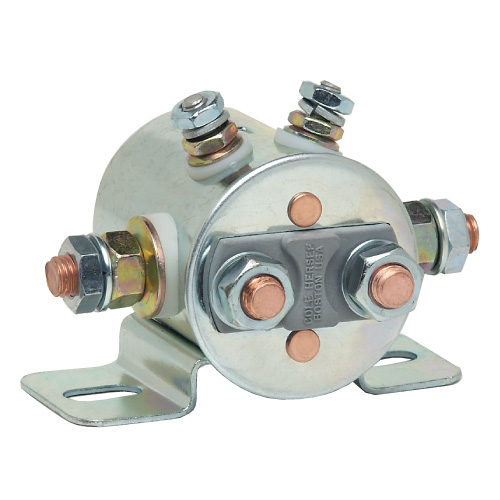

Two Circuit Change Over Solenoid
24401-LA-324401-LA24401-LA-2

Two Circuit Change Over Solenoid DPST

Special application for forward and reverse systems in electric golf carts, garden tractors, fork lift trucks, winches, etc.
12V: 24401B,
24V 24402B

Part number 24401BX
Categories: , .

Features

  • Two Circuit Change Over Solenoid DPST

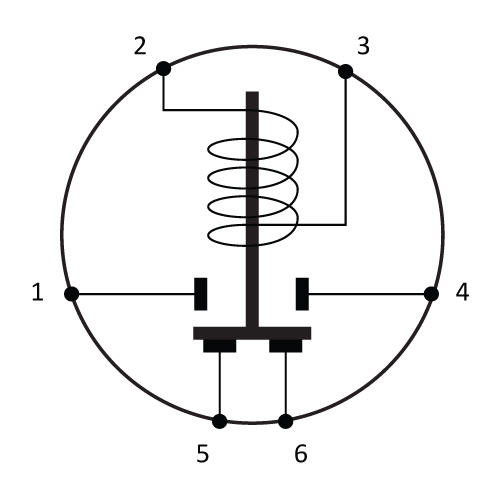

  • Normally open and normally closed contacts

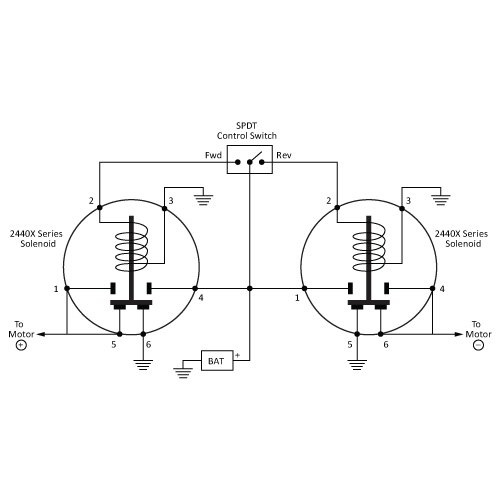

  • For forward and reverse systems like winches
  • Copper Stud terminals 5/16″-24
  • Insulated Coil terminals 10-32
  • Plated steel housing, nuts & washers Inc.

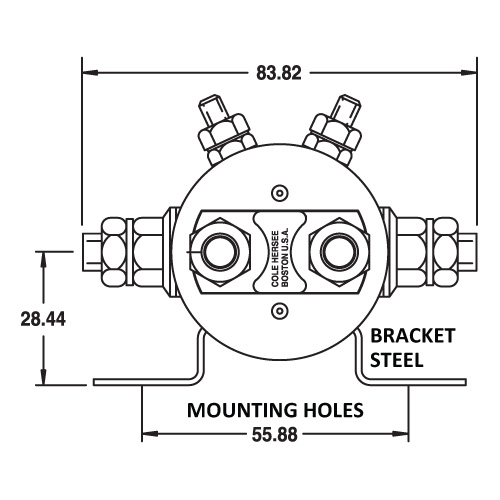

  • Mounting holes 8mm x 15mm, 56mm CTC
  • Int. ratings: 10 sec ON, 30 min OFF

Specifications

Voltage

12V, 24V

Amperage

35A NC, 85A NO Cont., 17.5 ohm

Dimensions

H 60 x D 70 x W 84

Configuration

DPST

Modes

Continuous Duty

Series

Solenoids Plated Steel Housing
