24452
24450-LA

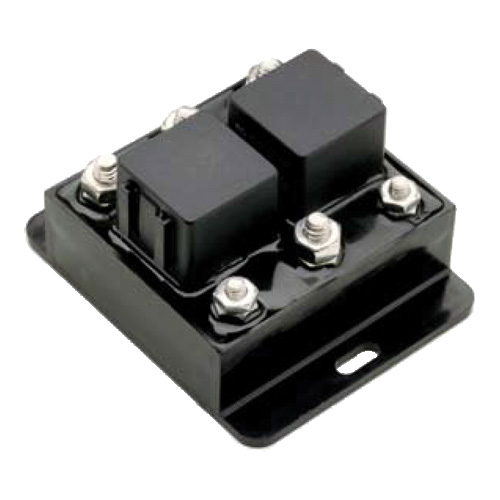

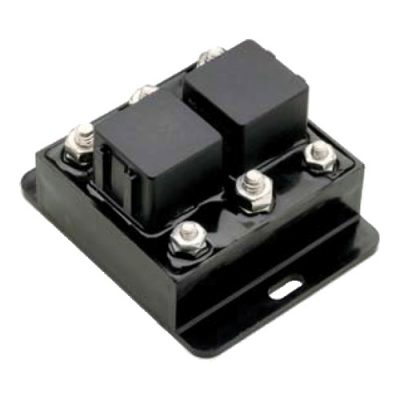

Twin Motor Forward & Reverse Relay

Reversing module carries a heavy load and is suitable for intermittent or continuous operation at 12V DC. Ideal for tarp or lift applications as well as for hoists, hatches, winches/windlasses, snowplows, intake/exhaust fans, vehicle outriggers and many other direction reversing applications.

Features

  • Twin Motor Forward & Reverse Relay Module
  • Dynamic braking when switch turned OFF
  • Heavy load current, dielectric strength 500V RMS
  • Studs are securely protected in epoxy
  • Low profile module (less than 50mm high)
  • Fully sealed for harsh environment,
  • Rust and moisture resistant plastic housing,
  • Tin plated brass studs, vibration resistance: 10-55Hz
  • For intermittent operation use switch:
    Mom On/Off/Mom On
  • For continuous use switch: ON-OFF-ON
  • Ideal for tarp, hoist, winch, fans and other
    motor reversing applications
  • Automatically reverses direction of motors

Specifications

Voltage

12V

Amperage

70A 5 min, 50A 3 min, 150A inrush

Dimensions

H 48 x D 74 x W 92

Configuration

DPDT

Modes

Intermittent Duty

Series

Solenoids Black Nylon Housing
