5582
SPST-2-term5582-LA

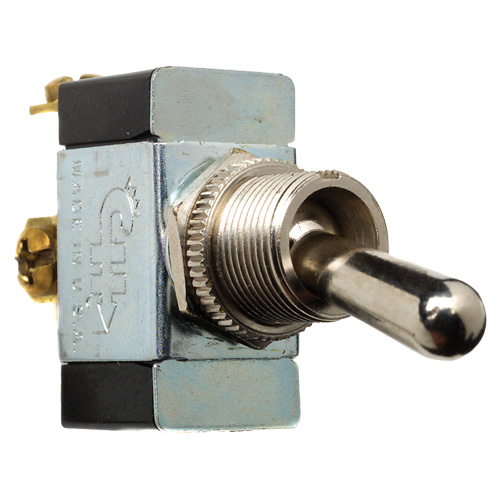

SPST On/Off Screw Toggle Switch

Toggle switches are manufactured in many different variations to handle most vehicle and equipment applications.

Toggle switches are usually classified by the number of poles and throws to identify their basic operation.

Part number 5582BX
Category: .

Features

  • SPST On/Off Screw Toggle Switch
  • 2 Screw terminals, silver contacts

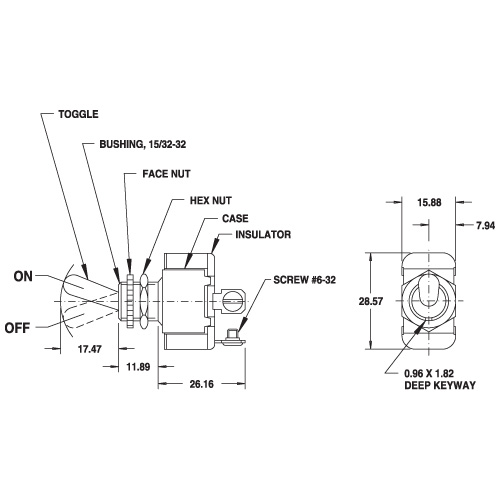

  • Stem: thread 15/32-32, L 12mm, D 12mm
  • Panel thickness: 6.35mm, Handle:17mm

Specifications

Voltage

12/24V Dualvoltage

Amperage

25A@12V, 12A@24V

Configuration

SPST

Modes

On/Off

Dimensions

H 29 x D 55 x W 16
