58336
58336 LockedSPST-2-term

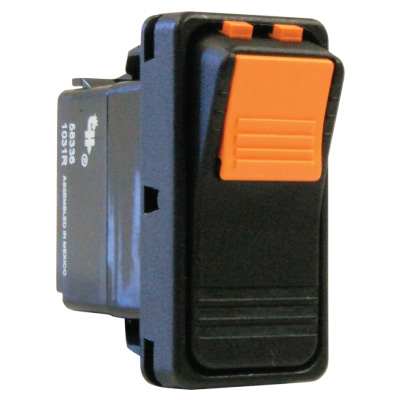

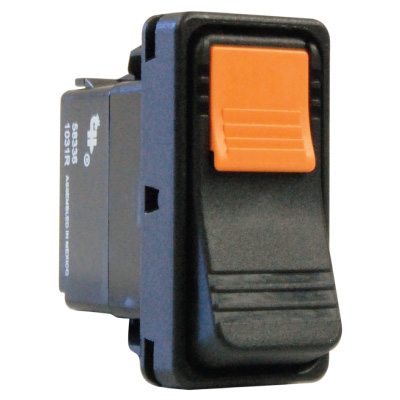

SPST On/Off Locking Rocker Switch

This rocker switch automatically locks the actuator into the Off position to help prevent accidental actuation. And must be slid to allow the actuator to be moved to the On position.

Part number 58336BX
Categories: , .

Features

  • SPST On/Off Locking Rocker Switch
  • Locking actuator, slide release
  • Orange Lock on each operation
  • 2 Blade terminals, silver contacts
  • Black actuator, weather resistant
  • Fits panels 2.35mm to 4.73mm
  • Panel hole: W 21.1mm, H 36.8mm

Specifications

Voltage

12/24V Dualvoltage

Amperage

20A@12V, 10A@24V

Dimensions

H 43 x D 38 x W 25

Configuration

SPST

Modes

On/Off

Series

Rockers Blank
