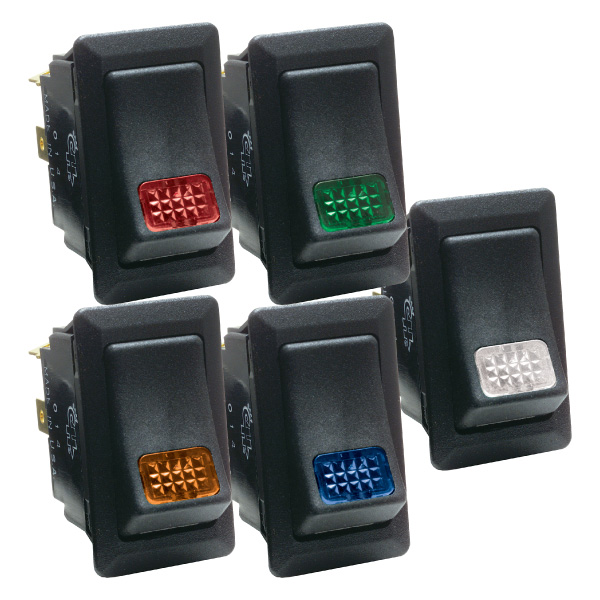

58328 Series Rocker Switches
SPST-3-term-depsnap-in-mountingCole Hersee Small Box

SPST On/Off Dependent Pilot Rocker Switch

The 58328 Series with incandescent illumination have brass blade terminals and are also sealed making them resistant to dust and moisture.

Part number 58328-13BX
Categories: , .

Features

  • SPST On/Off Dependent Pilot Rocker Switch
  • Dependent pilot ON with load
  • Black actuator illuminated
  • 3 Blade terminals, silver contacts
  • Wide bezel, snap in mounting
  • Range of colour options
  • Fits panel 2.36mm – 4.73mm
  • Panel hole: W 21.1mm, H 36.8mm

Specifications

Voltage

12V

Amperage

25A@12V, 15A@24V

Dimensions

H 43 x D 41 x W 24

Lens colour

Clear, Amber, Green, Red, Blue

Configuration

SPST

Modes

On/Off

Series

Rockers Incandescent Pilot

Application

Dependent Illumination

Part #

58328-04BX Red 12V SPST On/Off Rocker Switch
58328-11BX Green 12V SPST On/Off Rocker Switch
58328-12BX Clear 12V SPST On/Off Rocker Switch
58328-13BX Amber 12V SPST On/Off Rocker Switch
58328-55BX Blue 12V SPST On/Off Rocker Switch
58328-58BX Red 24V SPST On/Off Rocker Switch
58328-62BX Amber 24V SPST On/Off Rocker Switch
