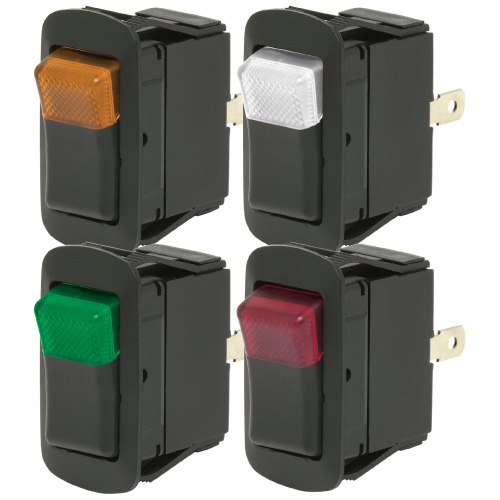

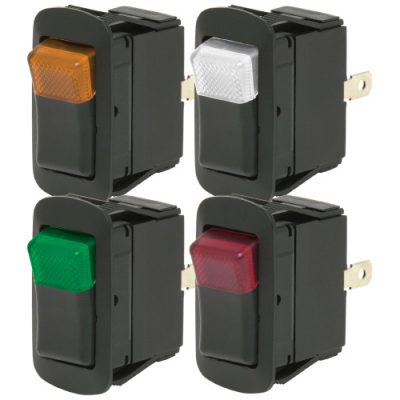

LED Rocker Switch SPST On/Off Dependent

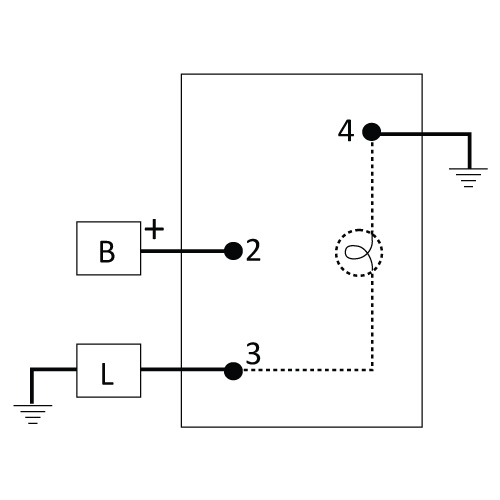

SPST-3-term-dep58312-Series-PanelCole Hersee Small Box

SPST On/Off Dependent LED Rocker Switch

The 58312 Series switches feature modern LED technology which gives a wide illumination angle, low power consumption and long service life.

With silver contacts for superior switching performance, and modern rounded edges and actuators, these matte finish switches fit perfectly into any modern vehicle or machine.

Part number 58312-A4BX
Categories: , .

Features

  • LED Rocker Switch SPST On/Off Dependent
  • 12V LED illuminated, 24V option reducer
  • Dependent operation, on with load
  • 3 blade terminals, silver contacts
  • Wide bezel black, snap in mounting
  • Weather resistant IP66 sealed
  • Fits panel 2.4mm – 4.7mm
  • Panel hole: W 21.1mm, H 36.8mm

Specifications

Voltage

12V

Amperage

25A@12V, 15A@24V

Dimensions

H 44 x D 41 x W25

Lens colour

Clear, Amber, Green, Red

Approvals

IP66 Rated

Configuration

SPST

Modes

On/Off

Series

Rockers LED Illuminated

Application

Dependent Illumination

Part #

58312-A4BX Amber Lens LED Rocker Switch
58312-C4BX Clear Lens LED Rocker Switch
58312-G4BX Green Lens LED Rocker Switch
58312-R4BX Red Lens LED Rocker Switch
