SPST On/Off Dep + Indep LED Rocker

The 58312 Series switches feature modern LED technology which gives a wide illumination angle, low power consumption and long service life.

With silver contacts for superior switching performance, and modern rounded edges and actuators, these matte finish switches fit perfectly into any modern vehicle or machine.

Part number 58312-GA4BX
Categories: , .

Features

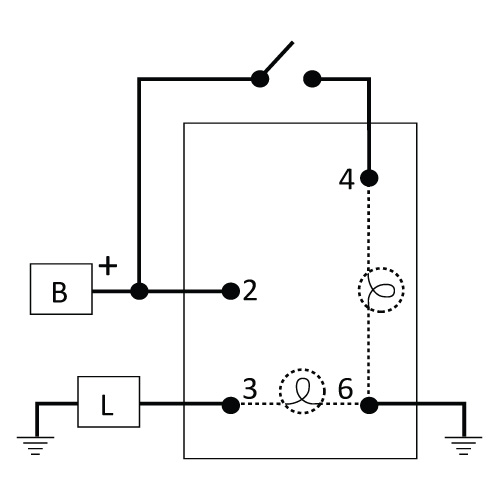

  • LED Rocker SPST On/Off Dependent + Independent
  • Dependent LED + Independent LED,
    Switched or with Load, 24V reducer option
  • 4 blade terminals, silver contacts
  • Wide bezel black, snap in mounting
  • Weather resistant IP66 sealed
  • Fits panel 2.4mm – 4.7mm
  • Panel hole: W 21.1mm, H 36.8mm

Specifications

Voltage

12V

Amperage

25A@12V, 15A@24V

Dimensions

H 44 x D 41 x W25

Lens colour

Amber/Green, Red/Green, Red/Red

Approvals

IP66 Rated

Configuration

SPST

Modes

On/Off

Series

Rockers LED Illuminated

Application

Independent + Dependent Illumination

Part #

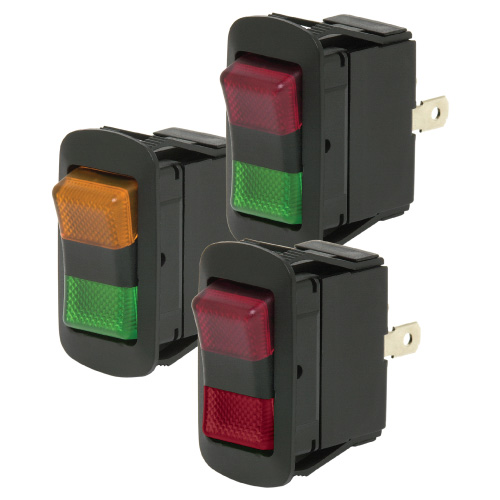

58312-GA4BX Green/Amber Lens LED Rocker Switch
58312-RG4BX Red/Green Lens LED Rocker Switch
58312-RR4BX Red/Red Lens LED Rocker Switch
