9115
9115-LA

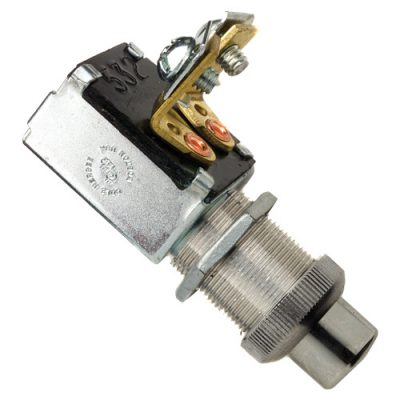

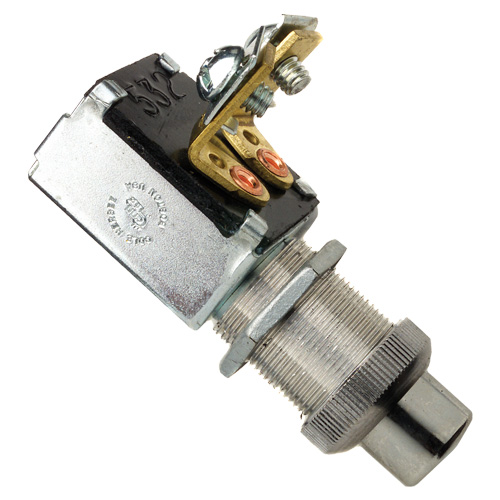

SPST On/Mom Off Screw Push Button Switch

Push Button switches (sometimes referred to as momentary switches) are most commonly used for Off/Mom On or On/Mom Off type applications.

Part number 9115BX
Category: .

Features

  • SPST On/Mom Off Screw Push Button Switch
  • Spring return to ON
  • Normally ON, chrome button
  • 2 screw terminals (with lock washers)
  • Mounting stem 5/8″-32, L 22.3mm, Dia 16mm
  • Suits panel thickness 12.7mm

Specifications

Voltage

6V-36V Multivoltage

Amperage

10A@12V, 5A@24V

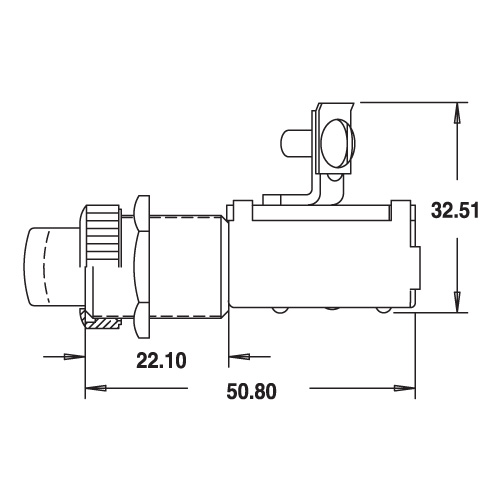

Dimensions

H 33 x D 51 x W 23

Configuration

SPST

Modes

On/Mom Off
