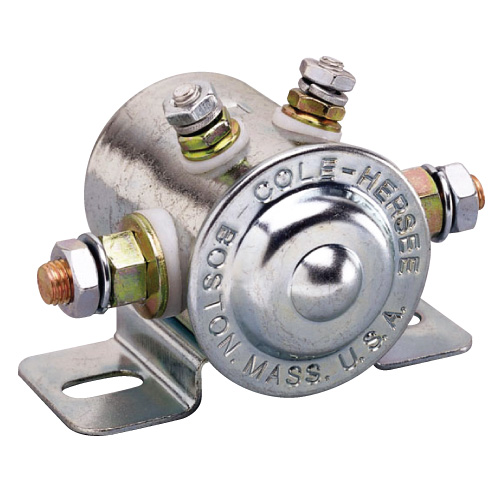

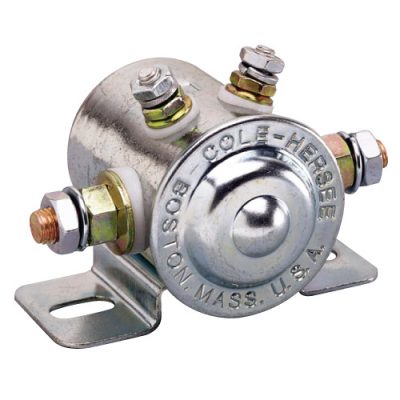

Marine Intermittent Duty Solenoid M200
Continuous Duty Solenoid DiagramContinuous Duty Solenoid Curcit

SPST 12V Intermittent Duty Solenoid

A solenoid in an electromagnetic relay used in a direct current wiring system between a low current capacity switch and a high current load requirement.

Part number M200BX
Categories: , .

Features

  • Marine 12V Intermittent Duty Solenoid SPST
  • 4 stud, Insulated stud earth
  • Marine construction, clear protective coating finish
  • SPST Normally open (one circuit) OFF/ON
  • Copper Stud terminals 5/16″-24
  • Insulated Coil terminals 10-32
  • Plated steel housing, nuts & washers Inc.
  • Mounting holes 8mm x 15mm, 56mm CTC
  • Mount with brand cap facing DOWN
  • Int. ratings: 10 sec ON, 20 min OFF

Specifications

Voltage

12V

Amperage

750A make, 100A break, 4.4 ohm

Dimensions

H 60 x D 64 x W 84

Configuration

SPST

Modes

Intermittent Duty

Series

Solenoids Plated Steel Housing

Application

Marine
