24512
24812-LA

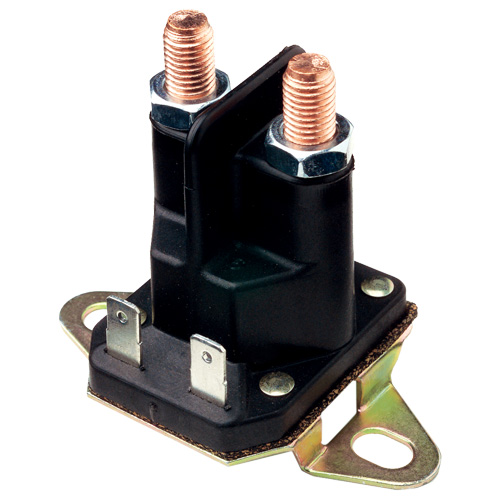

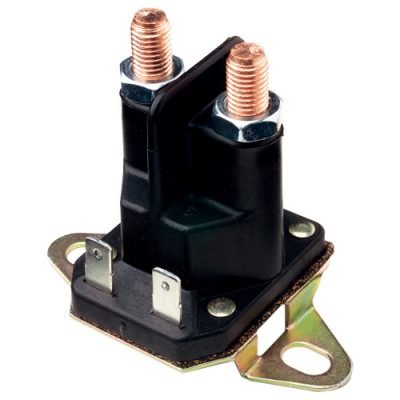

SPST 12V 100A Continuous Nylon Solenoid

A solenoid in an electromagnetic relay used in a direct current wiring system between a low current capacity switch and a high current load requirement.

The glass-filled nylon solenoids are lightweight, durable, resistant to corrosion and useful for starting small engines including, ride on mowers, golf carts and street sweepers.

Part number 24512-10BX
Categories: , .

Features

  • Continuous Duty Nylon Solenoid SPST 12V 100A
  • SPST Normally open (one circuit) OFF/ON
  • 2 blade, 2 stud, Copper Stud terminals 5/16″-24
  • Internal grounded coil terminal 10-32, F bracket
  • Glass black nylon housing, nuts & washers inc
  • Mounting holes 8mm x 15mm, 56mm CTC
  • Int. ratings: 10 sec ON, 30 min OFF

Specifications

Voltage

12V

Amperage

100A Continuous, 400A Inrush, 100A Make and Break, 16 ohm

Dimensions

H 65 x D 47 x W 76

Configuration

SPST

Modes

Continuous Duty

Series

Solenoids Black Nylon Housing
