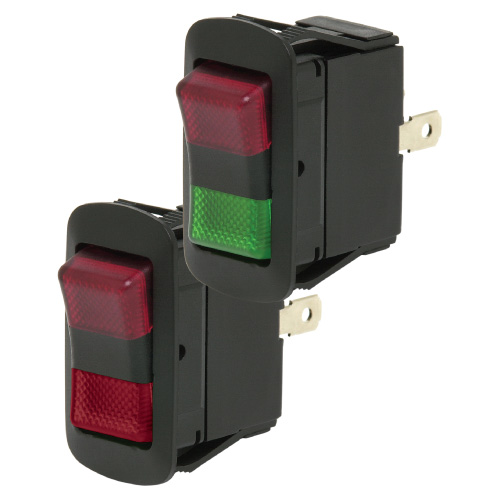

SPDT On/On Dependent LED Rocker Switch

The 58312 Series switches feature modern LED technology which gives a wide illumination angle, low power consumption and long service life.

With silver contacts for superior switching performance, and modern rounded edges and actuators, these matte finish switches fit perfectly into any modern vehicle or machine.

Part number 58312-RG2BX
Categories: , .

Features

  • LED Rocker Switch SPDT On/On Dependent
  • Dependent operation, on with loads
  • 4 blade terminals, silver contacts
  • Wide bezel black, snap in mounting
  • Weather resistant IP66 sealed
  • Fits panel 2.4mm – 4.7mm
  • Panel hole: W 21.1mm, H 36.8mm

Specifications

Voltage

12V

Amperage

25A@12V, 15A@24V

Dimensions

H 44 x D 41 x W25

Lens colour

Amber/Green, Red/Green, Red/Red

Approvals

IP66 Rated

Configuration

SPDT

Modes

On/On

Series

Rockers LED Illuminated

Application

Dependent Illumination

Part #

58312-RG2BX Red/Green Lens LED Rocker Switch
58312-RR2BX Red/Red Lens LED Rocker Switch
