30427

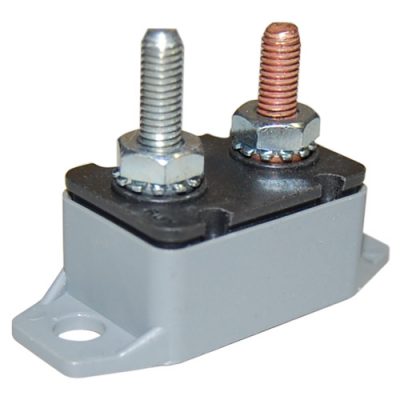

Plastic Thermal Reset Cycling Circuit Breakers

These weather resistant plastic Type I circuit breakers cycle or continuously resets until the overload is corrected.

Part number 30427-__
Categories: , .

Features

  • Thermal reset, weather resistant
  • Cycles or continuously resets until overload is corrected
  • Grey plastic case and mounting brackets
  • Flange mount, stud terminals 10-32
  • Short stud – BAT, Long stud – Load

Specifications

Voltage

12V

Amperage

15A, 40A

Dimensions

H 31 x D 20 x W 51

Series

Circuit Breakers Cycling

Approvals

SAE J 553

Part #

30427-40BX 40A 12V Boxed
