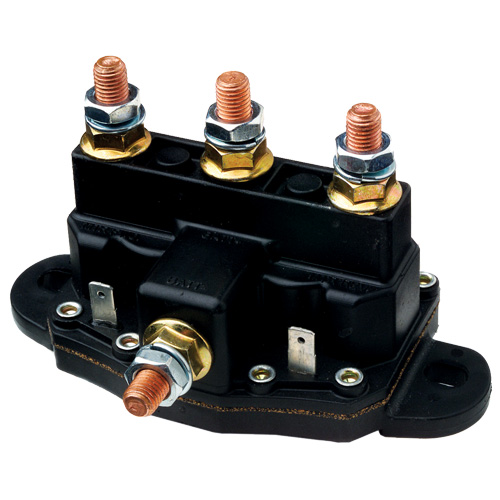

Motor Reversing Twin Solenoid
24450-LA24450-LA-2

Twin Motor Reversing Intermittent

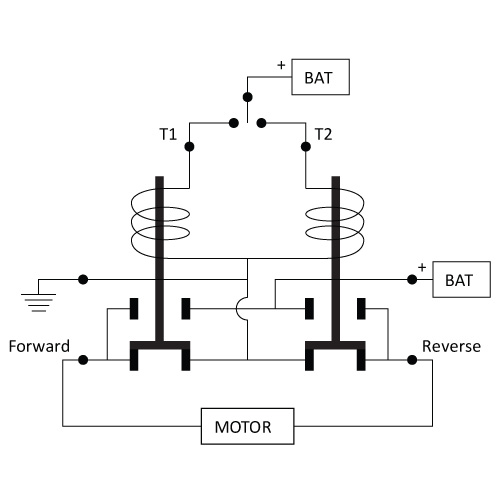

For reversing motors such as hoists, winches, windlasses, ATVs and snowplow blades. Two solenoids in one for cost and space savings and simpler wiring. Two integral solenoids provide dynamic braking for permanent magnet motors when neither coil is energized. 12V: 24450B, 24V: 24450-02B

Part number 24450BX
Categories: , .

Features

  • Motor Reversing Twin Solenoid DPDT 12V
  • F bracket, copper contacts
  • Coil terminal blades, common ground
  • Two blade coil terminals 5/16″-24
  • Black nylon housing, nuts & washers Inc.
  • Mounting holes, 105mm CTC

Specifications

Voltage

12V, 24V

Amperage

75A@12V, 45A@12V

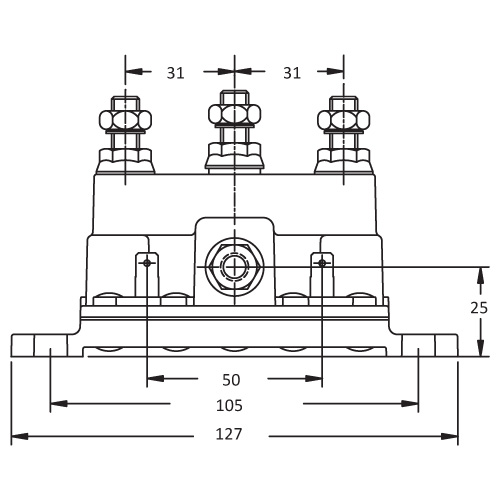

Dimensions

H 76.5 x D 83 x W 127

Configuration

DPDT

Modes

Intermittent Duty

Series

Solenoids Black Nylon Housing
