30055
30055-LA

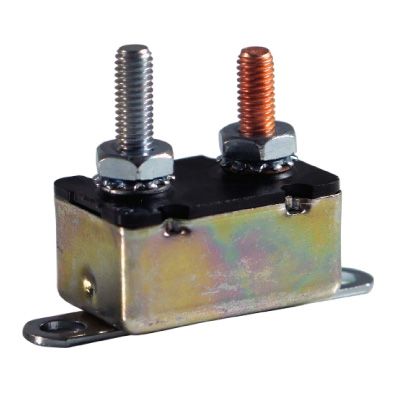

Metal Thermal Reset Cycling Circuit Breakers

These metal Type I circuit breakers cycle or continuously resets until the overload is corrected.

Part number 30055-__
Categories: , .

Features

  • Thermal reset, cycles or continuously resets
    until overload is corrected
  • Plated steel case and mounting brackets
  • Flange mount, stud terminals 10-32
  • Short stud – BAT, Long stud – Load

Specifications

Voltage

12V, 24V

Amperage

10A, 15A, 20A, 25A, 30A, 40A, 50A, 6A

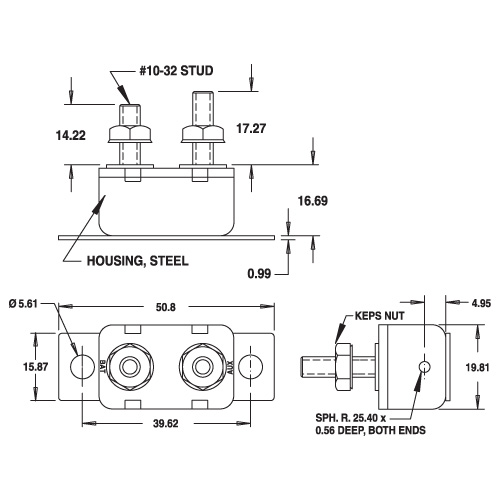

Dimensions

H 31 x D 20 x W 51

Series

Circuit Breakers Cycling

Approvals

SAE J 553

Part #

Part Numbers 12V Boxed
30055-6B 6A
30055-10BX 10A
30055-15BX 15A
30055-20BX 20A
30055-25BX 25A
30055-30BX 30A
30055-40BX 40A
30055-50BX 50A
Part Numbers 24V Boxed
30172-10BX 10A
30172-15BX 15A
30172-20BX 20A
30172-30BX 30A
