30409
30409-LA

Metal Plugin Cycling ATC Circuit Breakers

These metal Type I circuit breakers cycle or continuously resets until the overload is corrected.

Terminals are grooved so that they can be easily snapped off with pliers to fit the electrical blocks of different vehicles.

Use as is long terms for Kenworth trucks.

Features

  • Cycles or continuously resets until overload is corrected
  • Plated steel case, plug in mounting
  • Cut on grooves for Length of terminals

Specifications

Voltage

12V

Amperage

10A, 15A, 20A, 25A, 30A

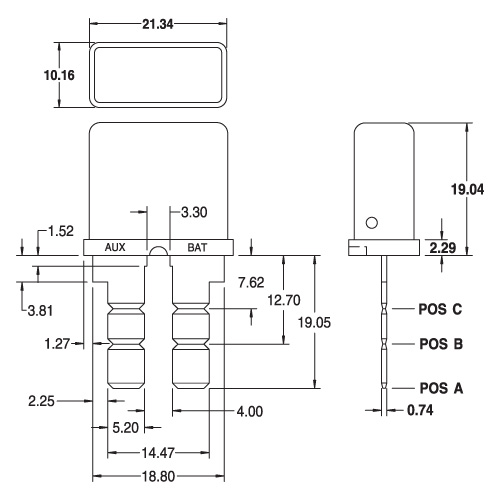

Dimensions

H 19 x D 10 x W 21

Series

Circuit Breakers Cycling, Circuit Breakers Blade Plugin

Approvals

SAE J 553

Part #

Part Numbers 12V Boxed
30409-10BX 10A
30409-15BX 15A
30409-20BX 20A
30409-25BX 25A
30409-30BX 30A
