Marine Switch 3 Pos Ignition Off/Ign/Ign Start

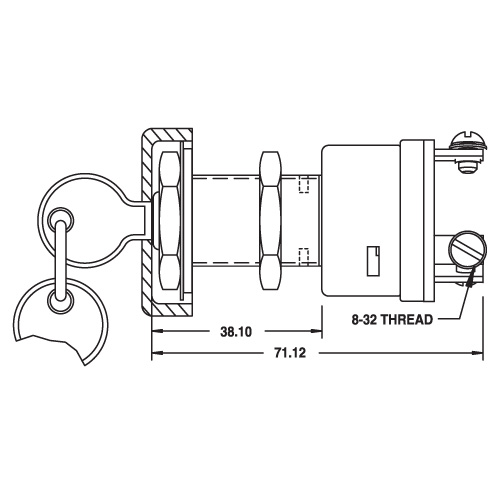

M850-dwgM850-dwg1

Marine Switch 3 Position Ignition Off/Ign/Ign Start

Ignition switches are usually operated by a coded key and tumbler lock, hencol keyed lock or lever. They are available with coded cylinder locks and keys or hencol non-tumbler locks with compatible keys.

Part number M850BX
Categories: , .

Features

  • Marine Switch 3 Position Ignition Off/Ign/Ign Start
  • Push for choke, coded key actuator
  • Impact resistant plastic body
  • 3 screw terminals, nickel silver contacts
  • Individual key codes for added security
  • Long stem suits panel up to 33mm thick

Specifications

Voltage

6V-36V Multivoltage

Amperage

15A@6-36V ignition, 20A@6-36V start

Dimensions

H 72 x Ø 38

Modes

Off/Ign/Ign Start

Series

Ignition Key Start

Application

Marine, Key Start
