M712-02B
M712-02B-dwgM712-02B-dwg1

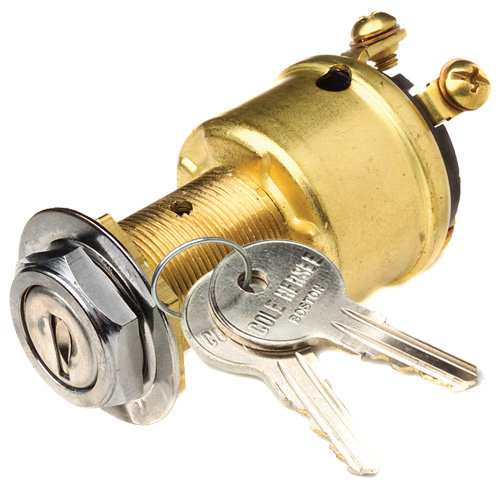

Marine Switch 4 Position Ignition Acc/Off/Ign Sta

Ignition switches are usually operated by a coded key and tumbler lock, hencol keyed lock or lever. They are available with coded cylinder locks and keys or hencol non-tumbler locks with compatible keys.

Part number M712-02BX
Categories: , .

Features

  • Marine Switch 4 Position Ignition Acc/Off/Ign Start
  • O-ring sealed stem, cylinder shutter
  • 4 brass screw terminals, coded key actuator
  • Brass contacts, case and hardware
  • Key removable in OFF position only

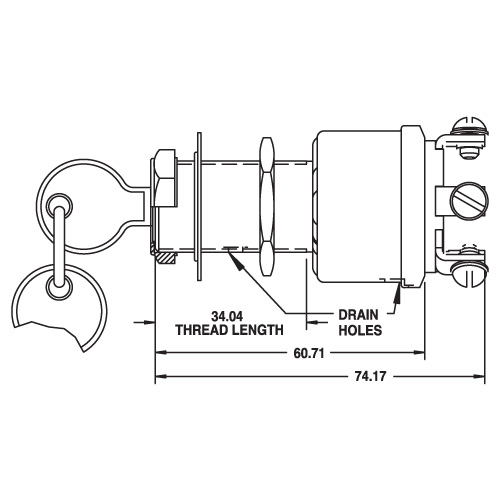

  • Mounting stem 13/16″-24 bush
  • Mounting stem length 30.95mm
  • Panel thickness up to 25.40mm

Specifications

Voltage

12V

Amperage

10A@12V accessory, 10A@12V ignition, 5A@12V start

Dimensions

H 74 x Ø 37

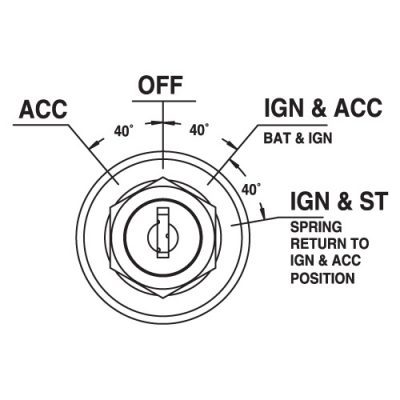

Modes

Acc/Off/Ign Start

Series

Ignition Key Start

Application

Heavy Duty, Marine, Key Start
