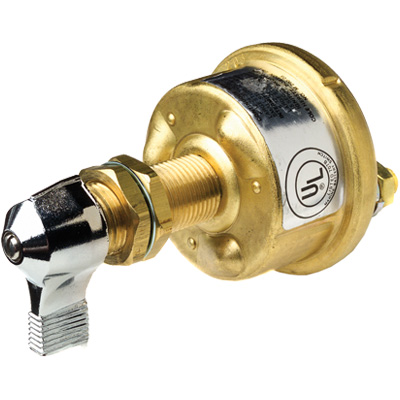

Marine Battery Master Switch DPST On/Off

This marine grade battery master switch will disconnect the battery and the alternator or generator field circuit.

Part number M290-05BX
Category: .

Features

  • Silver laminating contacts
  • Brass case, chrome lever
  • Field term 20A continuous
  • 2 stud terminals 10-32
  • Mounting stem 3/4″-24 thread
  • Mounting stem length 46mm
  • Suits panel thickness up to 23mm
  • UL rating 707B

Specifications

Voltage

6V-36V Multivoltage

Amperage

125A Continuous, 800A Intermittent, Small: 20A Cont

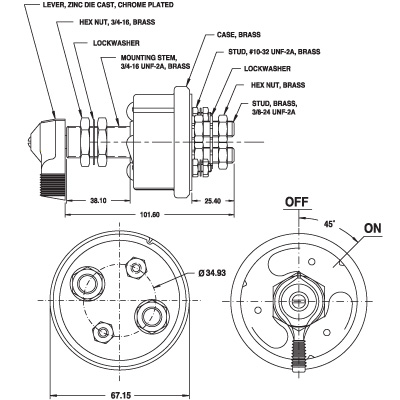

Dimensions

H 122 x D 67

Configuration

DPST

Modes

On/Off

Application

Heavy Duty, Marine
