Marine 3 Pos Ignition Switch Off/Ign/Ign Start

Ignition switches are usually operated by a coded key and tumbler lock, hencol keyed lock or lever. They are available with coded cylinder locks and keys or hencol non-tumbler locks with compatible keys.

Part number M550BX
Categories: , .

Features

  • Marine 3 Position Ignition Switch Off/Ign/Ign Start
  • Heavy duty, 3 brass screw terminals
  • Brass case and hardware, coded key actuator
  • Key removable in OFF position only

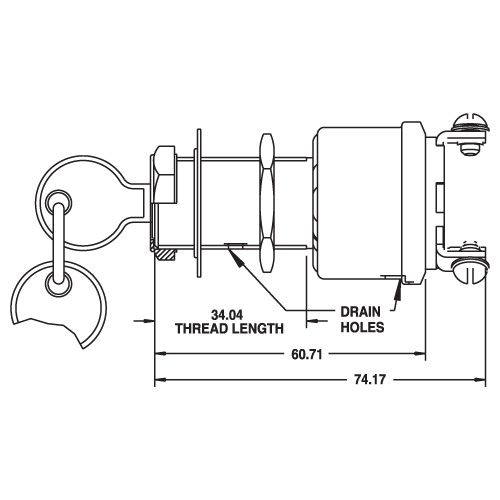

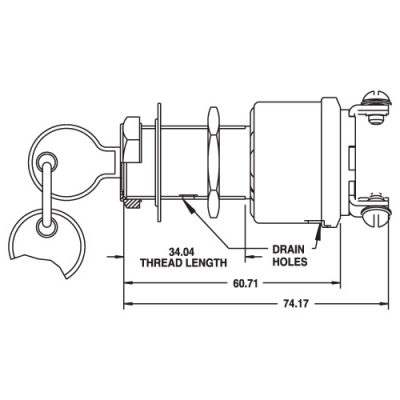

  • Mounting stem 13/16″-24 bush
  • Mounting stem length 30.95mm
  • Panel thickness up to 25.40mm

Specifications

Voltage

12V

Amperage

10A@12V ignition, 5A@12V start

Dimensions

H 74 x Ø 37

Modes

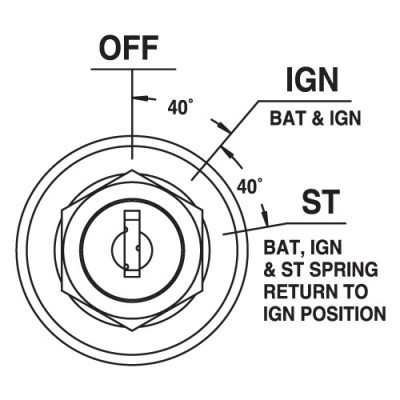

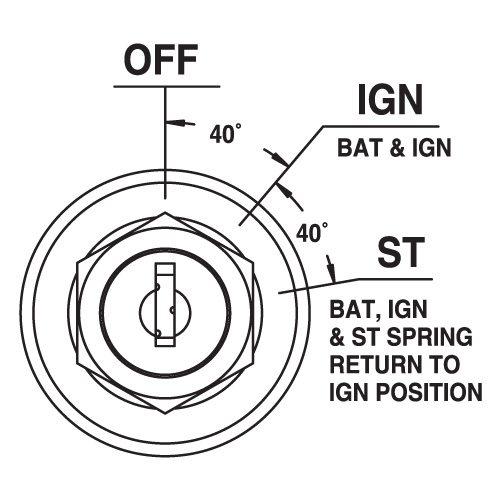

Off/Ign/Ign Start

Series

Ignition Key Start

Application

Heavy Duty, Marine, Key Start
