Latching Solenoid SPST 12V 110A
24200-LA24200-LA-2

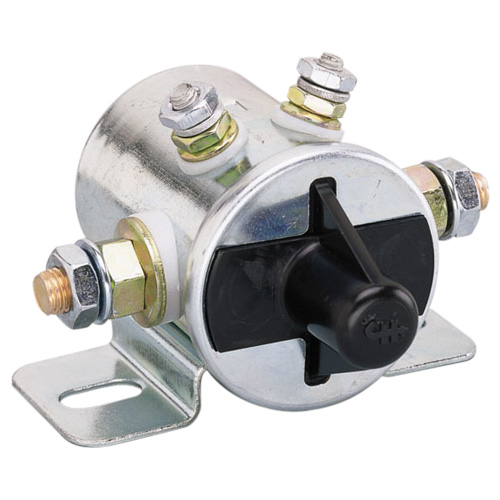

SPST 12V 110A Latching Solenoid

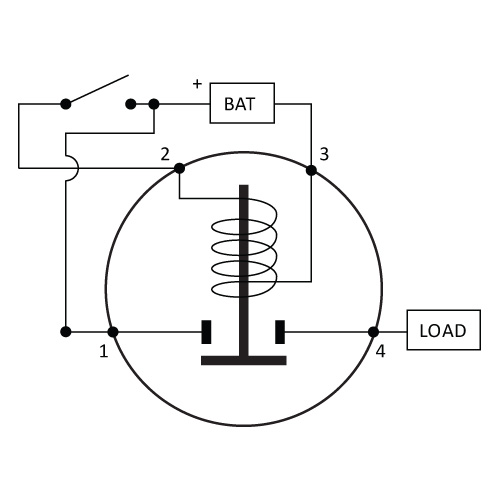

This special solenoid toggles On and Off, and requires no current to maintain the continuity of the power circuit. Use it with a Mom function switch. Actuation of the momentary switch causes current to flow in the solenoid coil, locking the contact in place, maintaining the load circuit in an On position. A second actuation of the momentary switch releases the plunger, turning the load circuit Off.
Suggested momentary switches: Toggle: 55020B, Rocker: 58027-02B.

Part number 24200BX
Categories: , .

Features

  • Latching Solenoid SPST 12V110A
  • Pulse energise, stays on; pulse again, drops out.
  • No heat generated due to coil taken out of circuit
  • Copper Stud terminals 5/16″-24
  • Insulated Coil terminals 10-32
  • Plated steel housing, nuts & washers Inc.

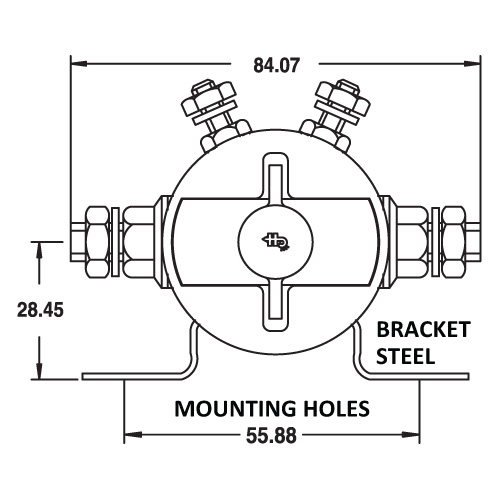

  • Mounting holes 8mm x 15mm, 56mm CTC
  • Mount with brand cap facing DOWN
  • Int. ratings: 10 sec ON, 30 min OFF

Specifications

Voltage

12V

Amperage

110A Continuous, 110A (carry only)

Dimensions

H 60 x D 79 x W 84

Configuration

SPST

Modes

Latching Solenoid

Series

Solenoids Plated Steel Housing
