Heavy Duty Solenoid Continuous
24812-LA24812-LA-2

SPST 12V 225A Heavy Duty Solenoid Cont

For use with heavy vehicles, materials handling, hydraulic systems, large DC machinery, and electric vehicles.

Part number 24812BX
Categories: , .

Features

  • Heavy Duty Solenoid Continuous 12V 225A SPST
  • SPST Normally open (one circuit) OFF/ON
  • Copper Stud terminals 5/16″-24
  • Insulated Coil terminals 10-32, L bracket
  • Plated steel housing, nuts & washers Inc.
  • Mounting holes 8mm x 15mm, 56mm CTC
  • Int. ratings: 10 sec ON, 30 min OFF

Specifications

Voltage

12V

Amperage

225A Continuous, 750A Make, 150A Break, 7.7 ohm

Dimensions

H 103 x D 69 x W 100

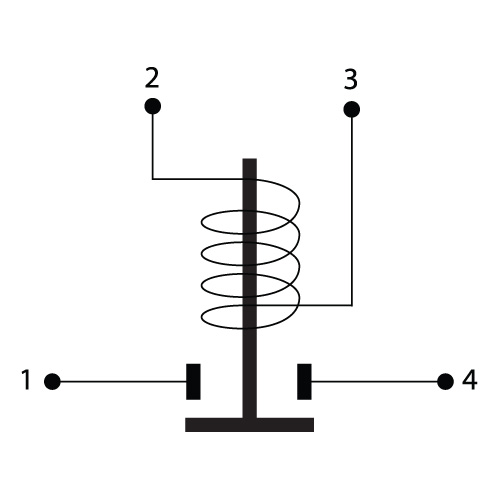

Configuration

SPST

Modes

Continuous Duty

Series

Solenoids Plated Steel Housing

Application

Heavy Duty
