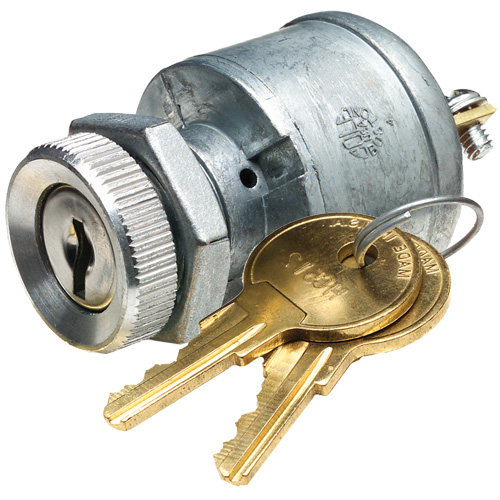

4 Position Heavy Duty Ignition Switch

Ignition switches are usually operated by a coded key and tumbler lock, hencol keyed lock or lever. They are available with coded cylinder locks and keys or hencol non-tumbler locks with compatible keys.

Part number 9579BX
Categories: , .

Features

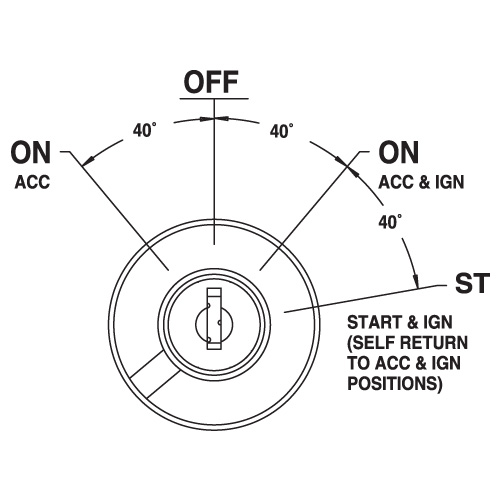

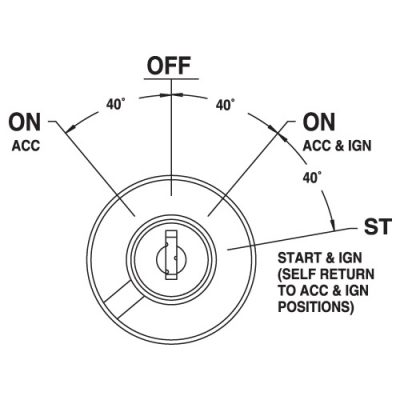

  • Heavy Duty Ignition Switch 4 Position Acc/Off/Ign Acc/Ign
  • 4 screw terminals, bronze contacts
  • Heavy duty, coded key actuator
  • Key removable in OFF position only
  • Mounting stem 3/4″ – 20 bush
  • Panel thickness 1.52mm to 9.52mm

Specifications

Voltage

12V

Amperage

10A@12V accessory, 10A@12V ignition, 10A@12V start

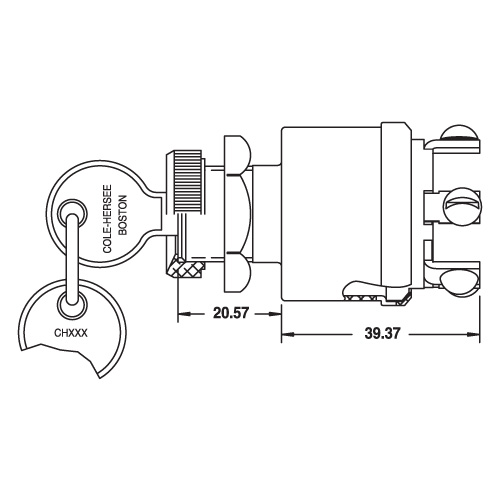

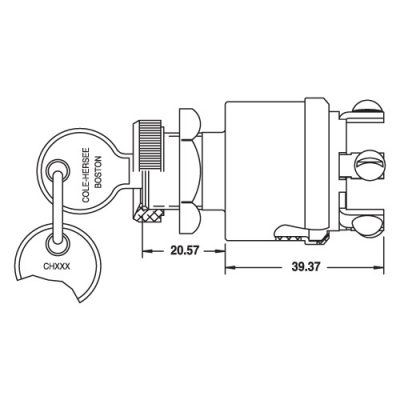

Dimensions

H 60 x Ø 37

Modes

Acc/Off/Ign Acc/Ign

Series

Ignition Key Start

Application

Heavy Duty, Key Start
