72079-01
72079-01-LA-272079-01-LA-1Cole Hersee Large Box

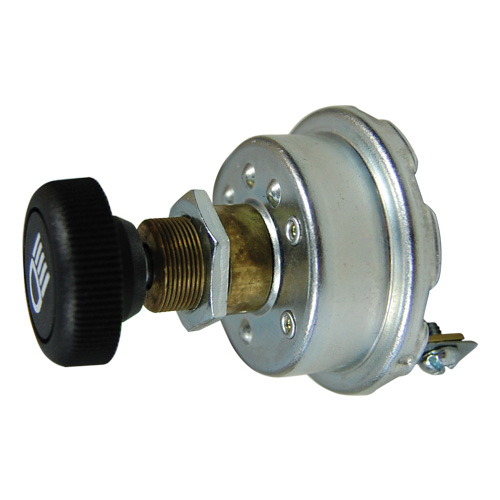

Headlamp Rotary Switch Off/On/On/On

Cole Hersee Rotary switches are available in die-cast alloy or nylon housing with most featuring a nylon knob to fit in with your existing vehicle interior.

Part number 72079-01BX
Category: .

Features

  • Headlamp Rotary Switch Off/On/On/On
  • Black actuator knob, Headlamp symbol

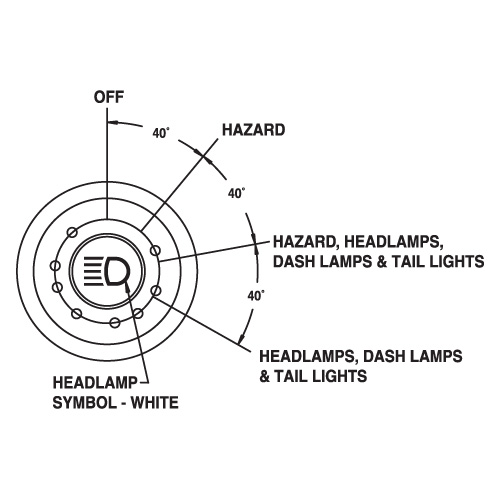

  • Positions: Hazard, Head & Tail light, Dash & Work light
  • Silver contacts, 5 screw terminals
  • O-ring Mounting stem 5/8″-32 thread

Specifications

Voltage

6V-24V Multivoltage

Amperage

20A@12V

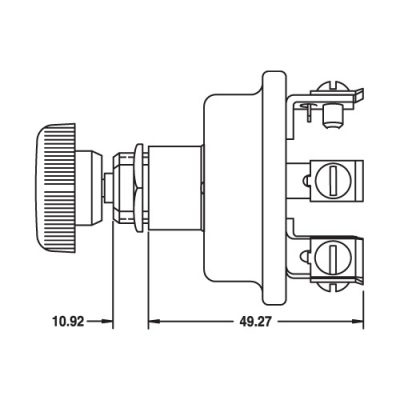

Dimensions

H 80 x D 53

Modes

Off/On/On/On
