dual battery master switch
75912-LACole Hersee Large BoxTRUCK

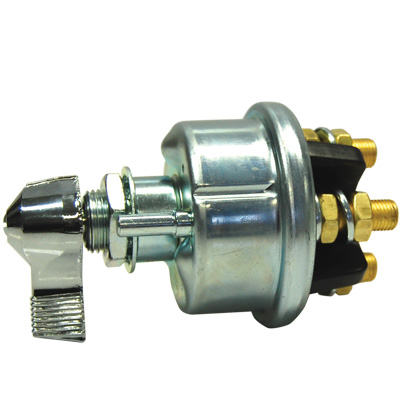

Dual Battery Master Switch Main 4 Studs

This Cole Hersee 4 battery stud master switch will disconnect the battery and the alternator or generator field circuit.

Part number 75912BX
Category: .

Features

  • Dual Battery Master Switch Main, 4 Studs
  • Silver contacts, chrome lever
  • Weather resistant, O-ring sealed
  • Battery 4 x stud 3/8″-24 studs
  • Indexing pin aligns switch and prevents rotation
  • Mounting stem 3/4″-24 thread, L 13mm
  • Suits panel thickness to 6.5mm
  • Can be used to switch positive and negative
    at the same time or for two separate circuits

Specifications

Voltage

6V-36V Multivoltage

Amperage

125A Continuous x 2, 750A Intermittent x 2

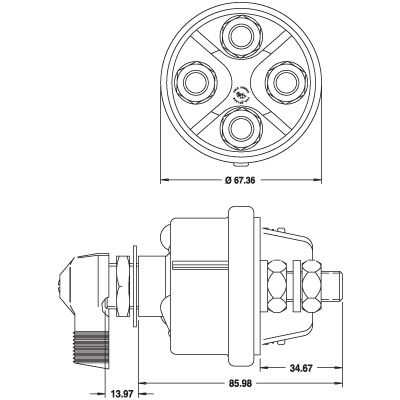

Dimensions

H 110 x D 67

Configuration

DPST

Modes

On/Off

Application

Heavy Duty, Mining
