58326-29
DPDT-8-term-independent-on-off-onsnap-in-mounting58326-Rocker-Panel

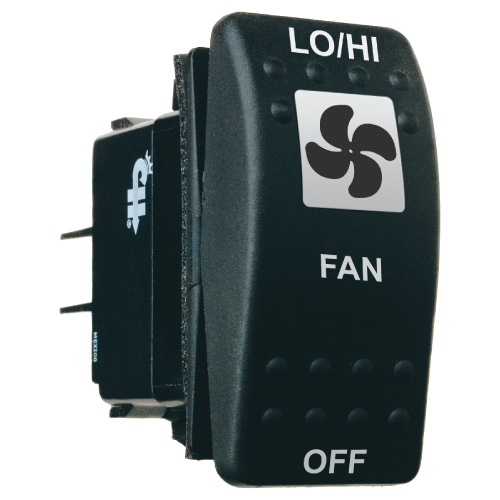

DPTT On/On/ On Fan Symbol Rocker Switch

The Incandescent Paddle Series Rocker Switches feature imprinted automotive symbols on some models.

With silver contacts for superior switching performance, these matte finish switches fit perfectly into any modern or classic vehicle or machine.

Part number 58326-29BX
Categories: , .

Features

  • DPTT On/On/ On Fan Symbol Rocker Switch
  • Imprinted LO/HI, FAN, with Fan symbol
    on illuminated white lens

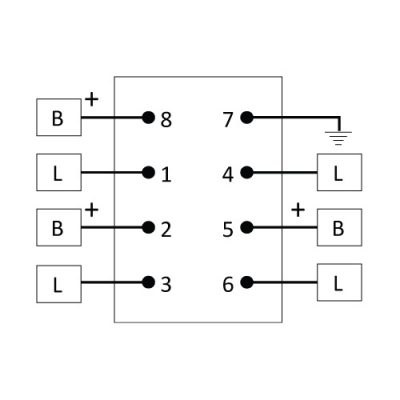

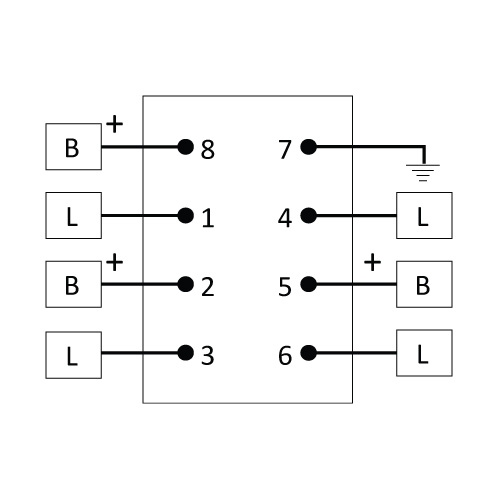

  • Independent illumination, Term 7 & 8
  • ON 1&2, 4&5> ON 2&3, 4&5> ON 2&3, 5&6
  • Sealed, blade terminals, silver contacts
  • Nylon wide bezel, snap in mounting
  • Fits panels 2.35mm – 4.73mm
  • Panel hole: W 21.1mm, H 36.8mm

Specifications

Voltage

12V

Amperage

20A@12V, 10A@24V

Dimensions

H 49 x D 39 x W 24

Configuration

DPTT

Modes

On/On/On

Series

Rockers Incandescent Paddle

Application

Independent Illumination
