75712-04
75712-04-LA-175712-04-LA-2

DPDT Reversing Mom On/Off/Mom On

Heavy duty 50A switch allows forward and reverse motion of a motor without the need for a relay, especially for operation of tarps on trucks.

Part number 75712-04BX
Category: .

Features

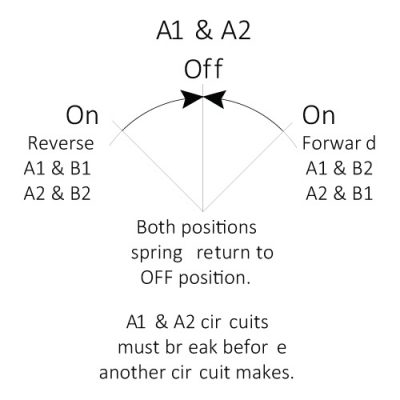

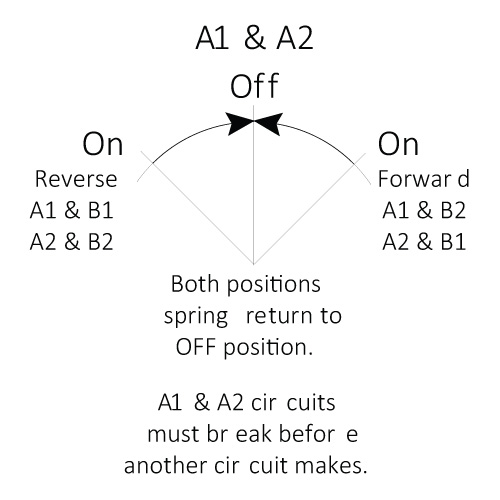

  • DPDT Reversing Mom On/Off/Mom On
  • 4 screw terminals, silver contacts
  • Lever actuator
  • Mounting stem 1/2″-20
  • Terminal screws 10-32 / 9.5mm
  • For forward and reverse control of motors

Specifications

Voltage

6V-36V Multivoltage

Amperage

50A@12V, 30A@24V

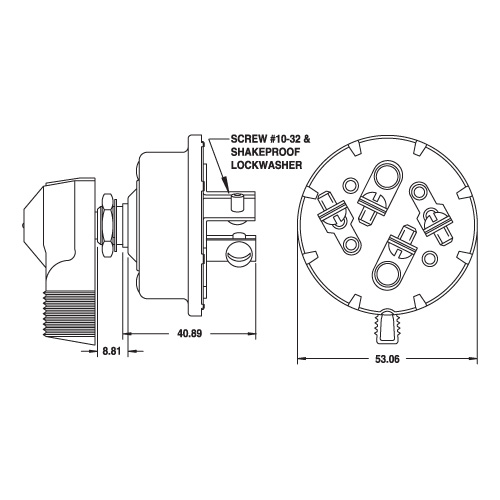

Dimensions

H 69 x D 53

Configuration

DPDT

Modes

Mom On/Off/Mom On

Application

Heavy Duty
