59024
DPDT-6-term59024-15-LA

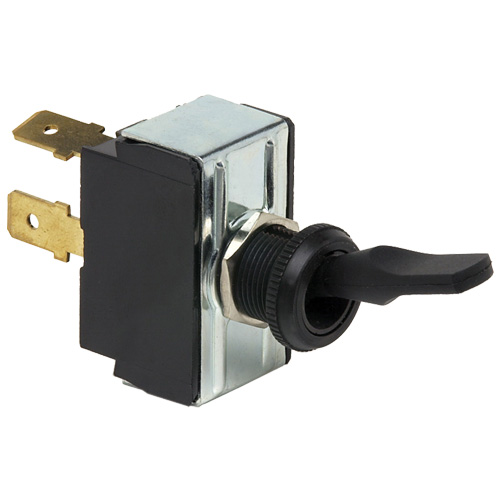

DPDT On/Off/ On Blade Paddle Toggle

Toggle switches are manufactured in many different variations to handle most vehicle and equipment applications.

Toggle switches are usually classified by the number of poles and throws to identify their basic operation.

Part number 59024-15BX
Categories: , .

Features

  • DPDT On/Off/ On Blade Paddle Toggle
  • Paddle handle (nylon), rep ‘Freightliner’
  • 3 Blade terminals, silver contacts

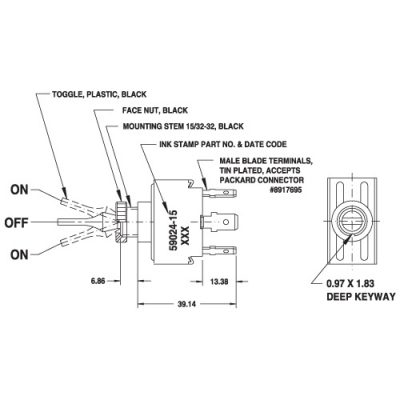

  • Stem: thread 15/32-32, L 12mm, D 12mm
  • Panel thickness: 6.35mm, Handle:25mm

Specifications

Voltage

12/24V Dualvoltage

Amperage

25A@12V, 12A@24V

Configuration

DPDT

Modes

On/Off/On

Dimensions

H 33 x D 67 x W 19

Series

Toggles Nylon Paddle Handle
