95033
95033-dwg95033-dwg2

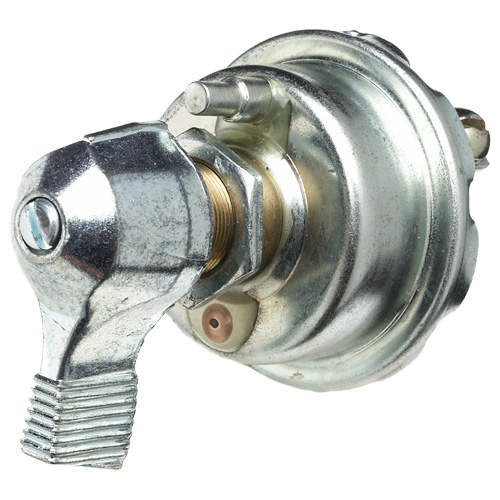

Diesel Ignition Switch 3 Pos Glow/Off/Glow

This heavy duty switch provides a superior pre-heat circuit to energize the glow pins.

Part number 95033BX
Categories: , .

Features

  • Diesel Ignition Switch Glow/Off/Glow Start
  • 3 screw terminals, silver contacts
  • O-ring sealed housing, Lever actuator
  • Mounting stem 5/8-32
  • Panel thickness 1.52mm to 6.65mm

Specifications

Voltage

12V

Amperage

50A@12V ignition, run glow, 5A@12V start

Dimensions

H 70 x Ø 53

Modes

Glow/Off/Glow Start

Series

Ignition Fixed Start

Application

Heavy Duty, Mining
