58326-24
DPDT-8-term-independent-on-off-onsnap-in-mounting58326-Rocker-Panel

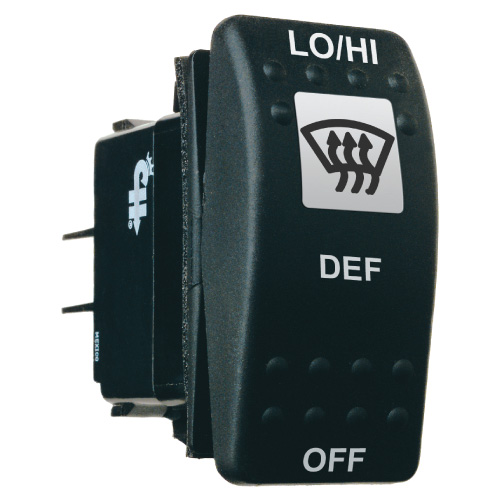

DPTT On/On/ On Def Symbol Rocker Switch

The Incandescent Paddle Series Rocker Switches feature imprinted automotive symbols on some models.

With silver contacts for superior switching performance, these matte finish switches fit perfectly into any modern or classic vehicle or machine.

Part number 58326-24BX
Categories: , .

Features

  • DPTT On/On/On Def Symbol Rocker Switch
  • Imprinted LO/HI, DEF, with Defrost
    symbolon illuminated white lens
  • Independent illumination, Term 7 & 8
  • ON 1&2, 4&5> ON 2&3, 4&5> ON 2&3, 5&6
  • Sealed, blade terminals, silver contacts
  • Nylon wide bezel, snap in mounting
  • Fits panels 2.35mm – 4.73mm
  • Panel hole: W 21.1mm, H 36.8mm

Specifications

Voltage

12V

Amperage

20A@12V, 10A@24V

Dimensions

H 49 x D 39 x W 24

Configuration

DPTT

Modes

On/On/On

Series

Rockers Incandescent Paddle

Application

Independent Illumination
