battery master switch

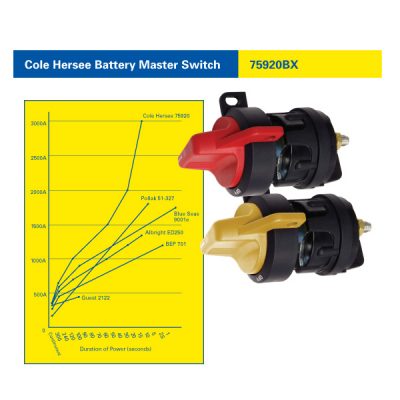

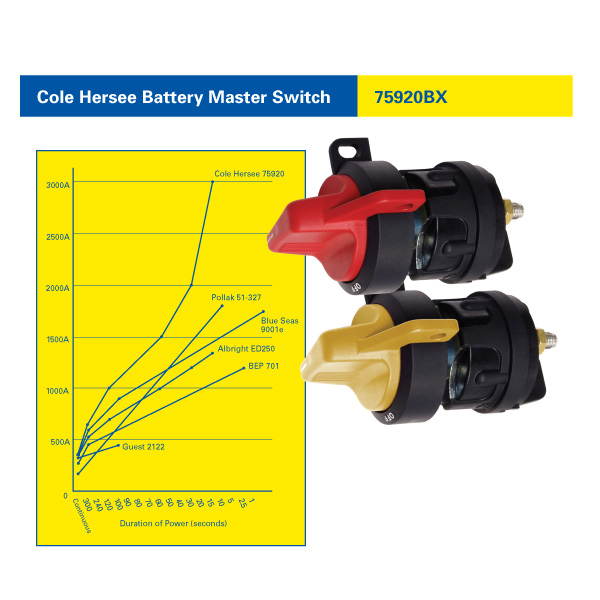

75920 Performance Chart75920-cap75920

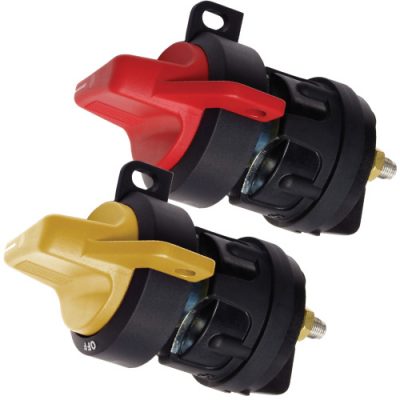

Battery Master Switch 75920 SPST On/Off

Provides a reliable power disconnection and safety cutoff that protects the vehicle against tampering, theft and battery drain. Protects personnel from electrical hazards during service.

For use on all vehicle electrical systems such as heavy truck, off-road, construction, material handling, refuse collection, marine and more.

Part number 75920BX
Category: .

Features

  • Battery Master Switch SPST On/Off
  • Silver laminated contacts, Weather resistant, IP68
  • Strong black ABS body, Built-in security locking
  • Indexing pin aligns switch and prevents rotation
  • O-ring seal on mounting shaft
  • Red or yellow locking actuator handle
  • Battery 2x studs 3/8″-24
  • Mounting stem 3/4″-16 thread, L 22mm
  • Suits panel thickness 12mm
  • Approvals: IP68, SAE, J1455

Specifications

Voltage

6V-36V Multivoltage

Amperage

300A Continuous, 1000A to 3000A Intermittent

Dimensions

H 136 x D 86 x W 70

Lens colour

Yellow, Red

Configuration

SPST

Modes

On/Off

Application

Heavy Duty, Mining

Approvals

IP67 Rated, SAE J1455

Part #

75920BX Red Handle Battery Master Switch
75920-01BX Yellow Handle Battery Master Switch
