Battery Master Switch 75910

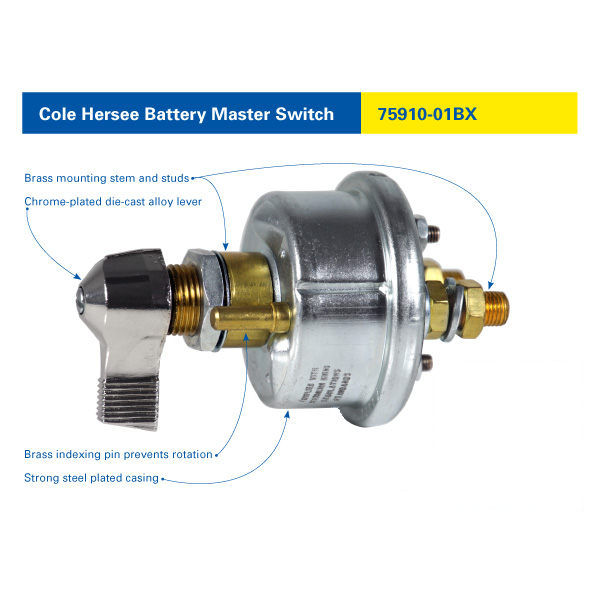

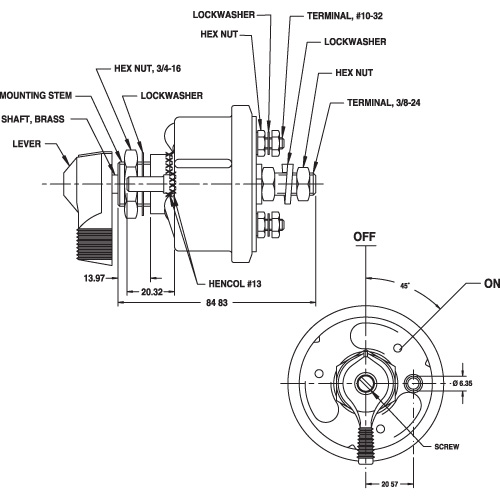

75910-01 Breakdown75910-mining-stamp75910-LA

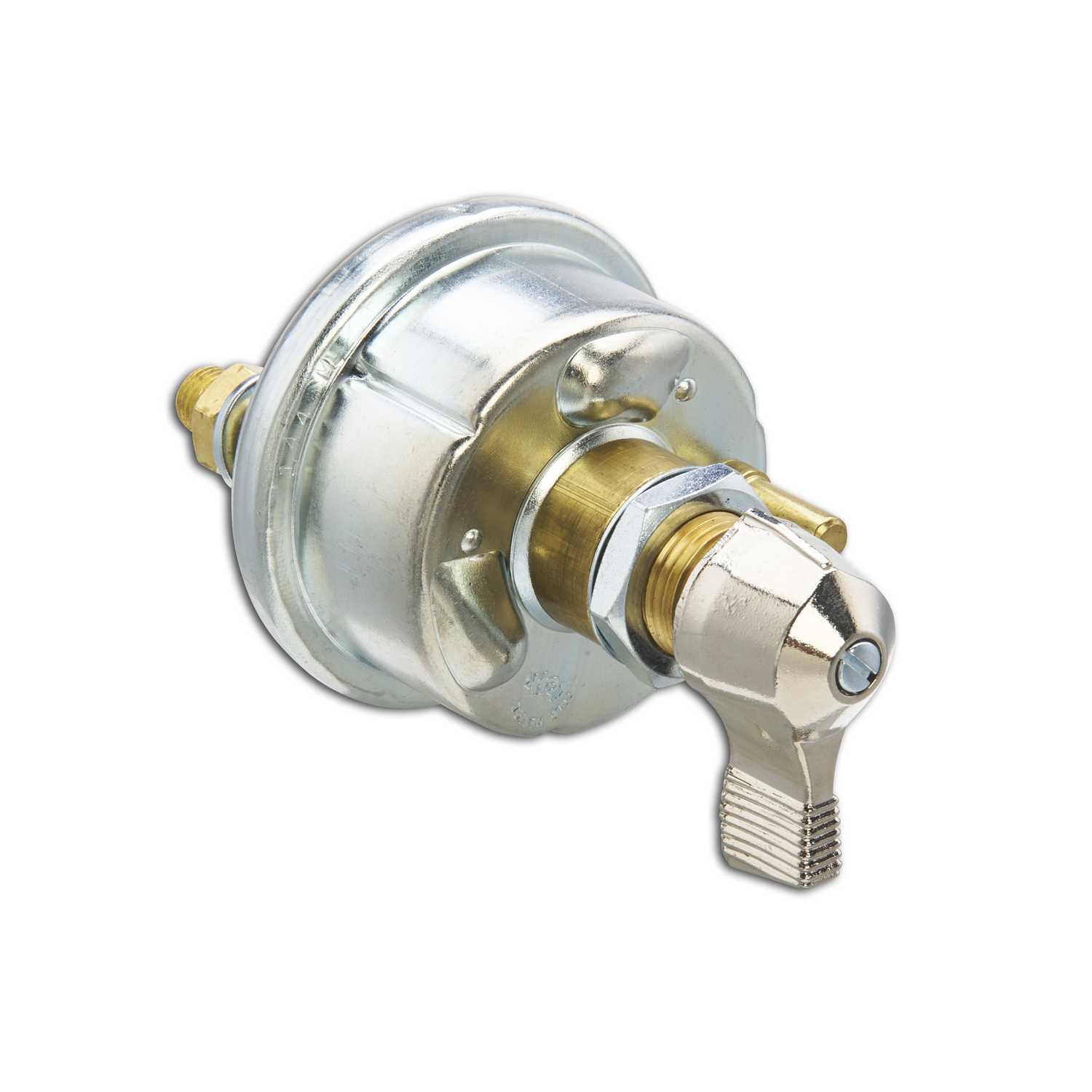

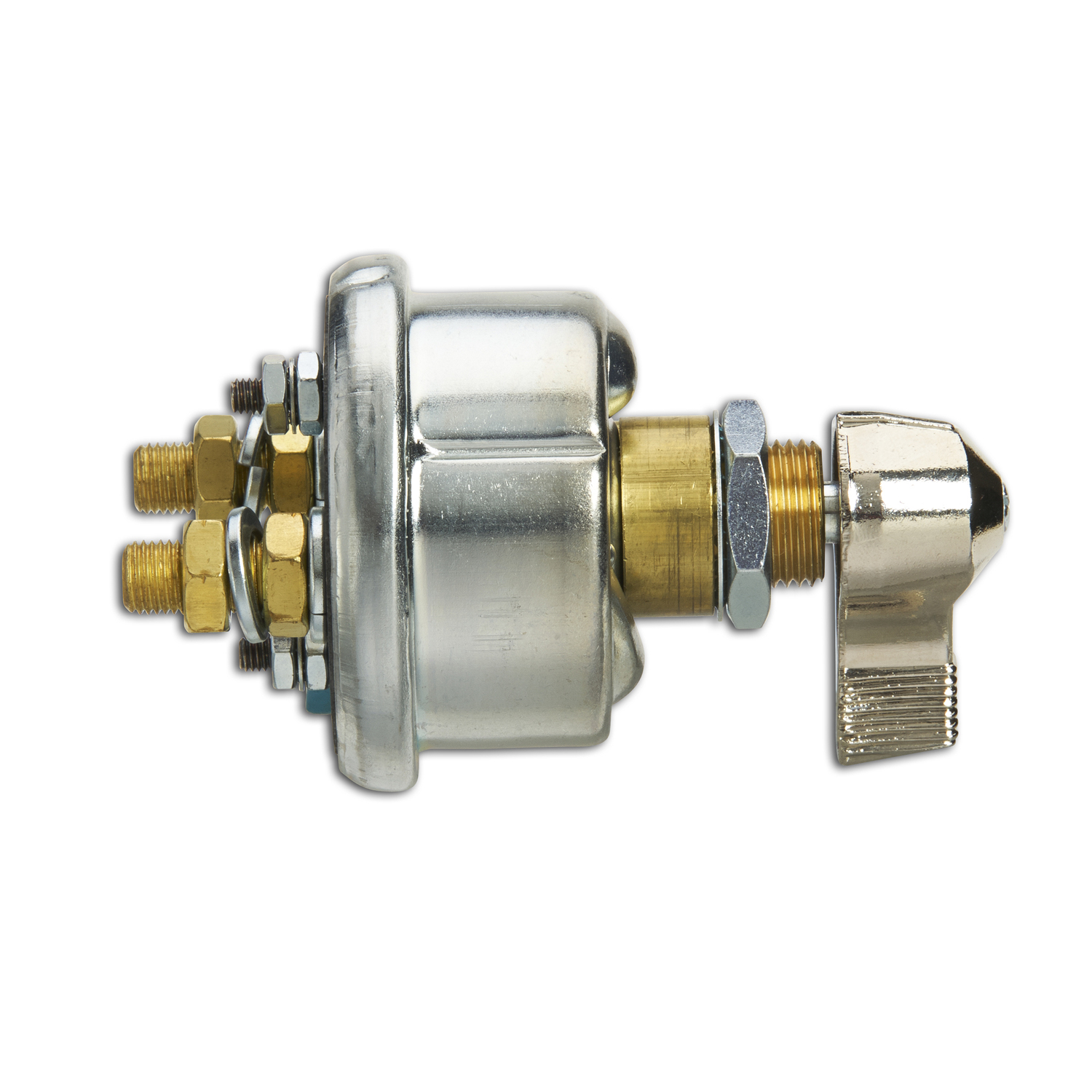

Battery Master Switch 75910 DPST On/Off

Australia’s most reliable Battery Master Switch was developed by Cole Hersee in conjunction with BAE and mining giant BHP Billiton, to service a specific requirement.

The Cole Hersee 75910 is now spec’d in for all vehicles entering a BHP Billiton mine site.

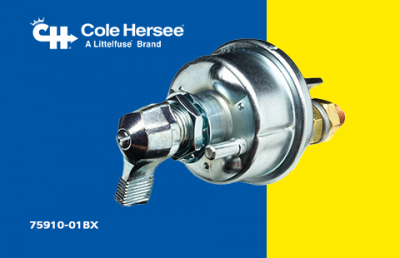

Part number 75910BX (CH Boxed)
Category: .

Features

  • The genuine Cole Hersee 75910 switch is stamped with
    ‘Complies With Australian Mining Regulations Standards’
  • disconnects the battery and the alternator or generator field
  • DPST, Silver contacts, Strong steel plated casing
  • Chrome-plated die-cast alloy lever
  • Brass mounting stem, studs and indexing pin
  • O-ring sealed for weather resistance
  • Indexing pin aligns switch and prevents rotation

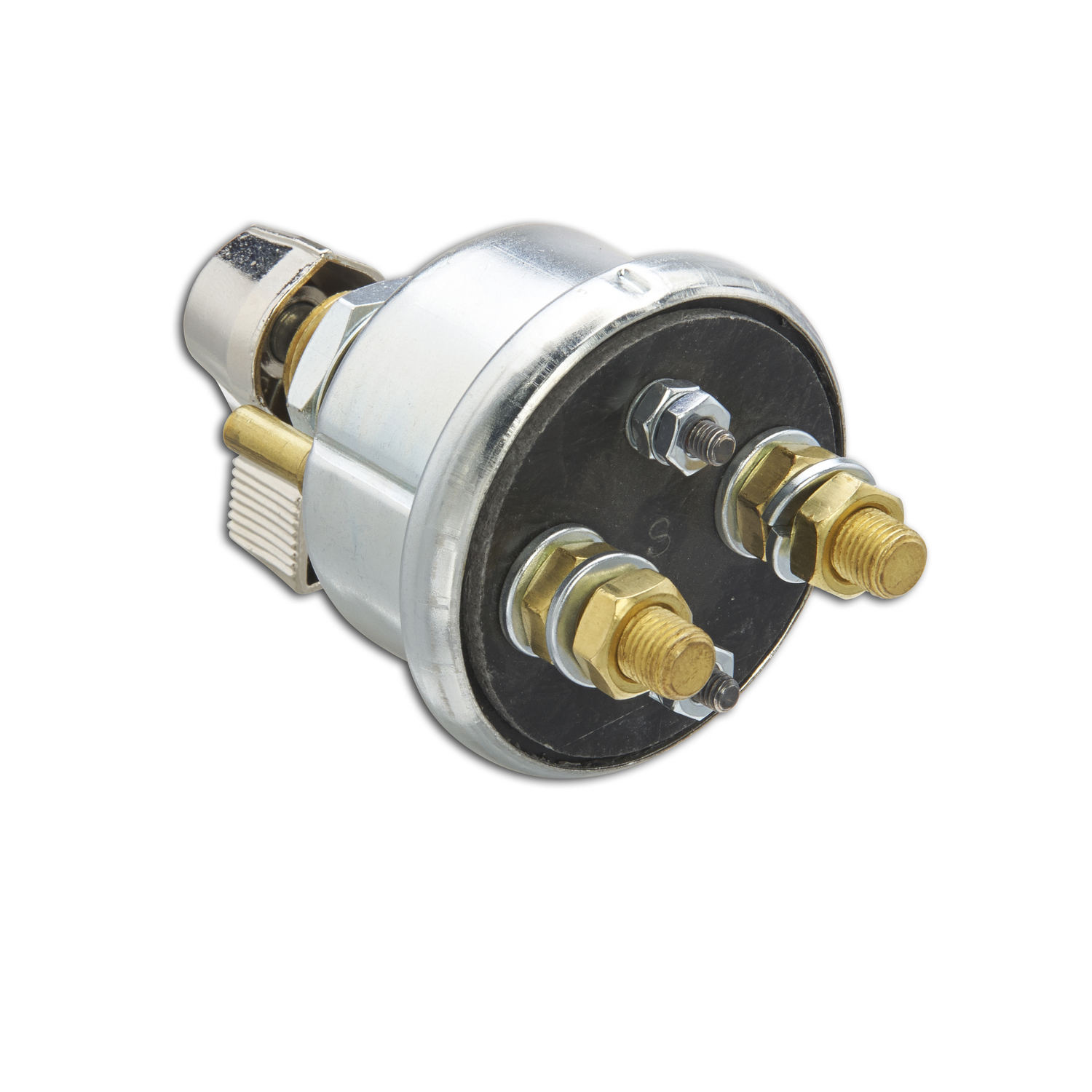

  • 2 x Field stud 10-32, 2 x Battery stud 3/8”-24
  • Mounting stem 3/4”-24 thread, L 13mm
  • Suits panel thickness to 6.5mm

Specifications

Voltage

6V-36V Multivoltage

Amperage

1000A Intermittent, 125A Continuous, Small: 20A Continuous

Dimensions

H 110 x D 67

Configuration

DPST

Modes

On/Off

Application

Heavy Duty, Mining
