75904
75904-LACole Hersee Large BoxTRUCK

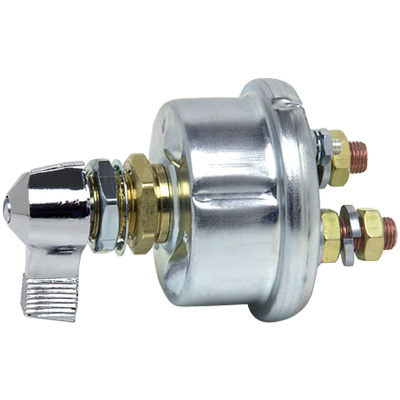

Battery and Field Master Silver On/Off

This Cole Hersee battery and field master switch will disconnect the battery and the alternator or generator field circuit.

Part number 75904BX
Category: .

Features

  • Battery and Field Master Silver DPST On/Off
  • Silver contacts, chrome lever
  • Weather resistant, O-ring sealed
  • Field terminals 20A continuous

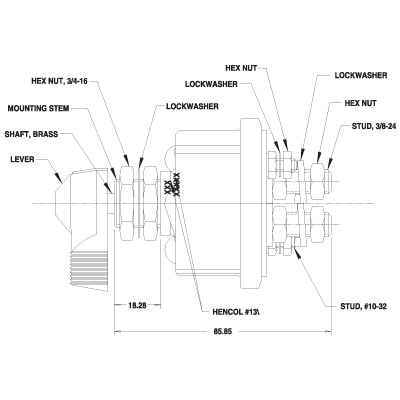

  • Field 2x stud 10-32
  • Battery 2x stud 3/8″-24
  • Mounting stem 3/4″-24 thread, L 13mm
  • Suits panel thickness to 6.5mm

Specifications

Voltage

6V-36V Multivoltage

Amperage

1000A Intermittent, 125A Continuous, Small: 20A Cont

Dimensions

H 110 x D 67

Configuration

DPST

Modes

On/Off

Application

Heavy Duty, Mining
