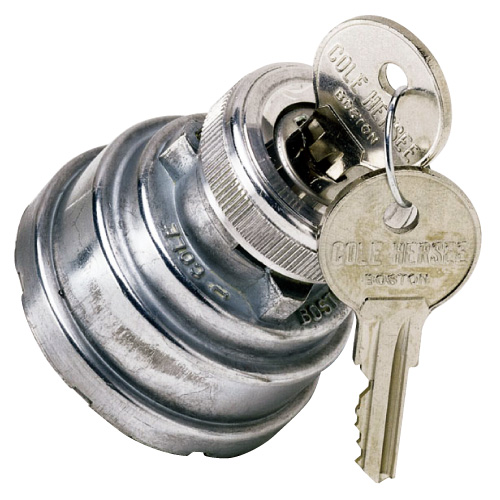

Anti-restart Ignition Switch Off/On/Ign Start

Ignition switches are usually operated by a coded key and tumbler lock, hencol keyed lock or lever. They are available with coded cylinder locks and keys or hencol non-tumbler locks with compatible keys.

Part number 956-3125BX
Categories: , .

Features

  • Anti-restart Ignition Switch 3 Position Off/On/Ign
  • 4 screw terminals, Copper contacts
  • O-ring sealed housing, keyed actuator
  • Will not restart unless returned to OFF position
  • Key removable in OFF position only
  • Mounting stem 1″-24 bush
  • Panel thickness 0.76mm to 2.85mm

Specifications

Voltage

12V

Amperage

30A@12V accessory, 10A@12V ignition, 10A@12V start

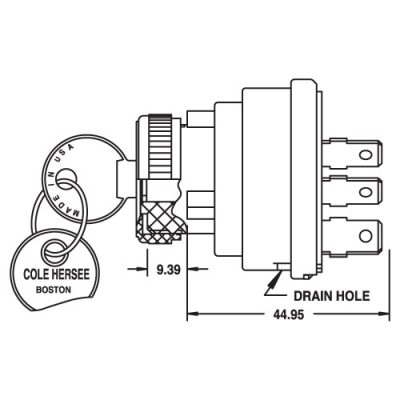

Dimensions

H 65 x Ø 47

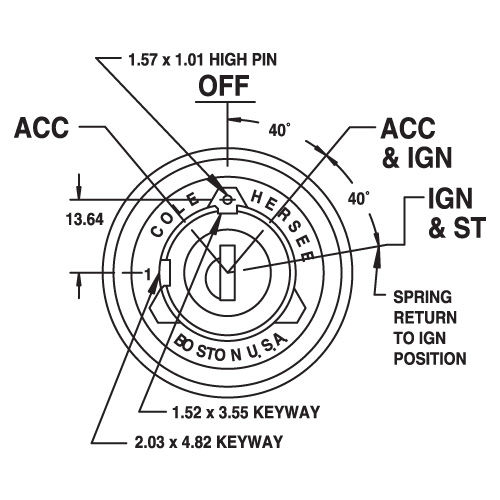

Modes

Off/On/Ign Start

Series

Ignition Key Start

Application

Key Start
