Anti-restart 4 Position Sealed Ignition Switch

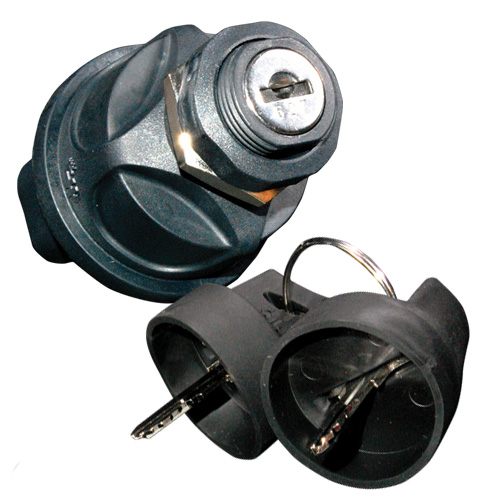

This sealed switch from Cole Hersee is constructed from engineered thermoplastic and is OEM quality. A fully sealed O-ring, ultrasonic welding and integral Deutsch connector, this switch is rated to IP67. Supplied with two matching keys including integrated boots.

Part number 95060-01BX
Categories: , .

Features

  • Anti-restart 4 Position Sealed Ignition Switch
  • Engineered thermoplastic, OEM quality
  • Fully sealed O-ring and ultrasonic welding
  • Integral Deutsch connector, IP67
  • Selectable switching and key options
  • Multiple key codes or keyed alike option

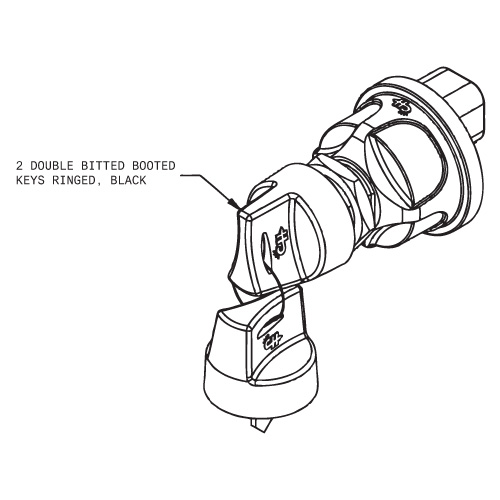

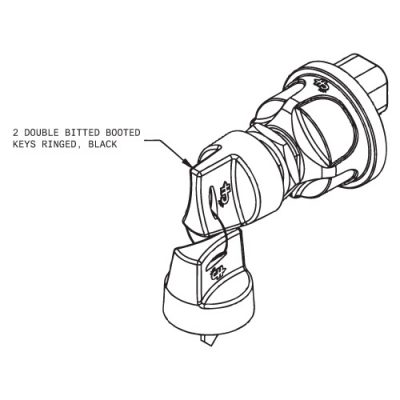

  • Supplied with 2 matching keys inc boots
  • Plastic facenut and nickel plated back nut
  • Key removable only in OFF position
  • Spring return to IGN/ACC position
  • Ideal for agricultural, earthmoving and mining

Specifications

Voltage

6V-24V Multivoltage

Amperage

10A@12V, 5A@24V, 10A sealed connector

Dimensions

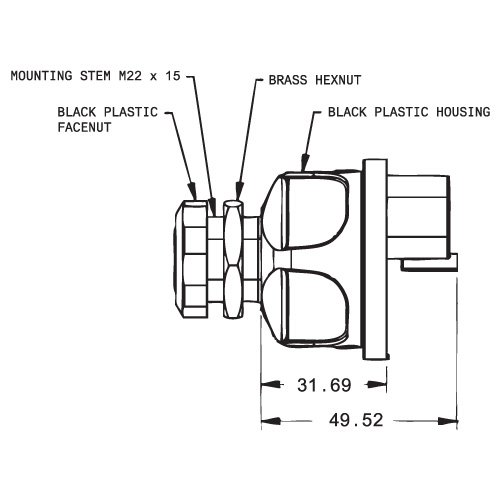

H 72 x Ø 51

Modes

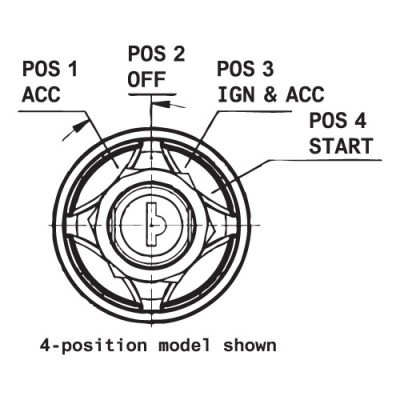

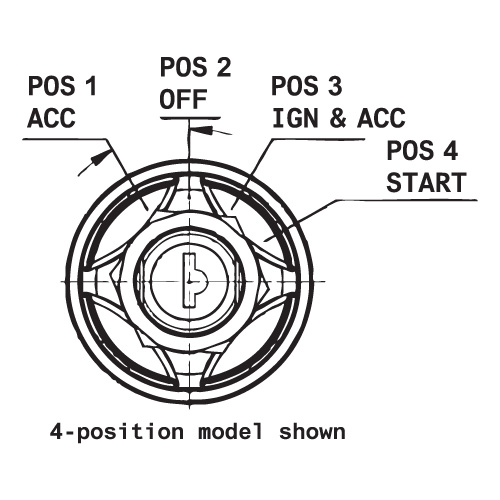

Acc/Off/Ign/Start (anti-restart)

Series

Ignition Key Start

Application

Heavy Duty, Marine, Key Start

Approvals

IP67 Rated
