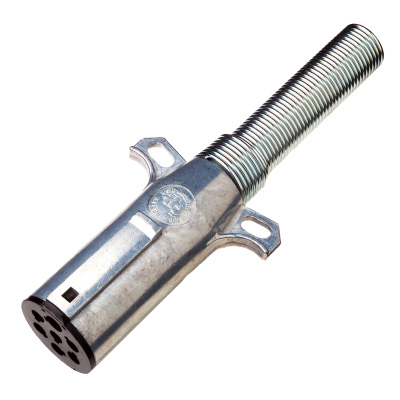

7 Pole Heavy Duty Metal Trailer Plug

Cole Hersee trailer connectors are built to withstand the rigors of trucking thousands of kilometers in dust and dirt, heat and cold, yet maintain the all-important electrical continuity between vehicle and trailer.

Part number 12092BX
Categories: , .

Features

  •  7 Pole Heavy Duty Metal Body Trailer Plug
  • Die-cast metal housing, Quick release
  • Floating contacts for best alignment
  • Plated steel cable protector provides strain
    relief and abrasion protection
  • Cable clamp holds cables firmly in place
  • Earth Pin 8AWG others 10AWG

Specifications

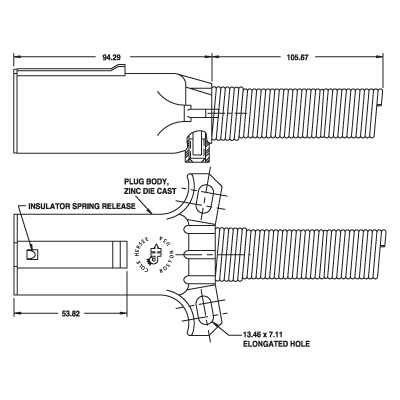

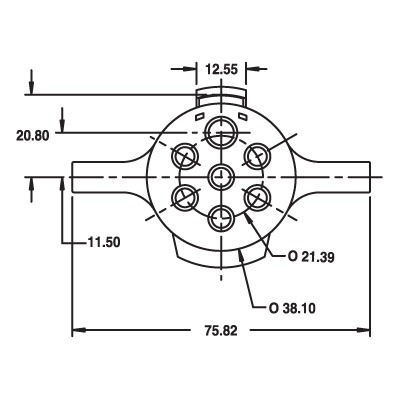

Dimensions

H 40 x D 200 x W 76

Series

Heavy Duty Connectors

Application

Heavy Duty

Approvals

ADR 42, SAE J560b
