7 Pole Heavy Duty Metal Trailer Plug

Cole Hersee trailer connectors are built to withstand the rigors of trucking thousands of kilometers in dust and dirt, heat and cold, yet maintain the all-important electrical continuity between vehicle and trailer.

Part number 1255BX
Categories: , .

Features

  •  7 Pole Heavy Duty Metal Body Trailer Plug
  • Die-cast metal housing, spring grip
  • Plated steel cable protector provides strain
    relief and abrasion protection
  • Cable clamp holds cables firmly
  • Unique brass female contact with self-adjusting spring band, ensures uniform contact with socket pins
  • Greater contact area for increased electrical efficiency
  • Coupling and uncoupling are easier, creates a wiping action that eliminates dirt, dust, etc.

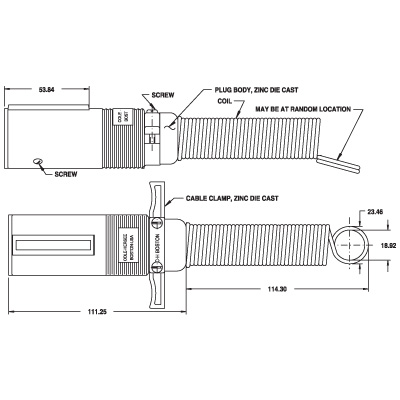

Specifications

Dimensions

H 40 x D 225 x W 68

Series

Heavy Duty Connectors

Application

Heavy Duty

Approvals

ADR 42, SAE J560b
