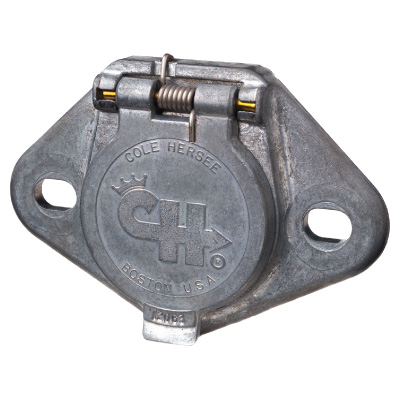

7 Pole Heavy Duty Metal Trailer Socket

Cole Hersee trailer connectors are built to withstand the rigors of trucking thousands of kilometers in dust and dirt, heat and cold, yet maintain the all-important electrical continuity between vehicle and trailer.

Part number 12063BX
Categories: , .

Features

  •  7 Pole Heavy Duty Metal Body Trailer Socket
  • Corrosion resistant die-cast metal
  • Spring loaded cover
  • Solid brass contact pins
  • Earth Pin 8AWG others 10 AWG

Specifications

Dimensions

H 84 x D 54 x W 104

Series

Heavy Duty Connectors

Application

Heavy Duty

Approvals

ADR 42, SAE J560b

Part #

12063BP Blister packed
12063-01BP Split pin contacts
