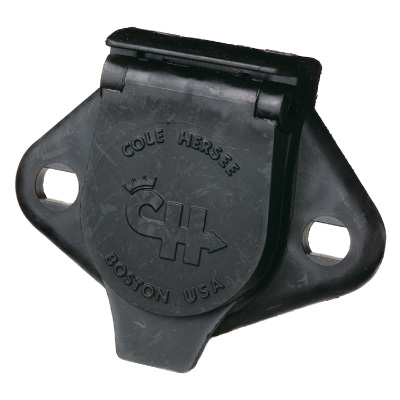

7 Pole Heavy Duty ABS Body Trailer Socket

Cole Hersee trailer connectors are built to withstand the rigors of trucking thousands of kilometers in dust and dirt, heat and cold, yet maintain the all-important electrical continuity between vehicle and trailer.

Part number 12080BX
Categories: , .

Features

  •  7 Pole Heavy Duty ABS Body Trailer Socket
  • Glass filled plastic housing prevents rust and corrosion
  • Insulated circuit contacts (not self-grounding)
  • Spring loaded cover, Solid brass contact pins
  • Earth Pin 8AWG others 10 AWG

Specifications

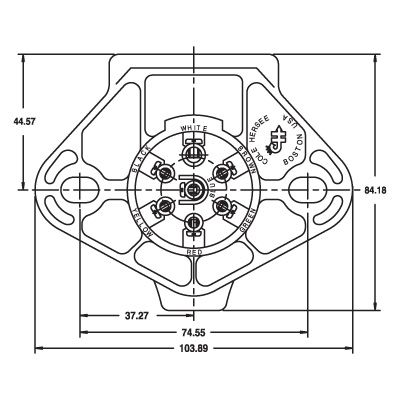

Dimensions

H 84 x D 54 x W 104

Series

Heavy Duty Connectors

Application

Heavy Duty

Approvals

ADR 42, SAE J560b

Part #

12080BP Blister packed
12080-01BP Split pin contacts
